Balluff RH5TA0040U01D601V102 Balluff 0-10VDC output
Repair
Call for price
Purchase
CSL Part Number: 88649

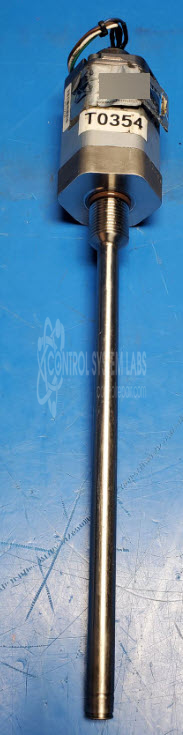

Product Overview: The Balluff RH5TA0040U01D601V102 is a magnetostrictive linear position transducer with a 0-10 VDC analog output. It uses a magnetic wand that travels along a sensing rod to provide continuous position feedback, with output voltage proportional to the magnet's location. The transducer features LED indicators (green for normal operation, red at travel limits) and is commonly used in paper manufacturing and industrial automation applications requiring precise linear position measurement. It typically outputs ±9 to ±10 volts across its full stroke range.
Category: Transducer
Manufacturer: Balluff
Manufacturer Part Number: RH5TA0040U01D601V102
Common Failures
Frequent issues reported include broken or crushed wires and external contaminants such as grease or oil affecting the device's operation. Devices occasionally suffer from improperly connected components impacting voltage output stability.
Repair Approach
Repairs typically involve rewiring or replacing broken wires, resoldering connections, and adding or fixing connectors. Quick connect installations have been performed to facilitate easier assembly and maintenance. These efforts are intended to restore the device's functionality and improve durability against external damage.
Testing & Quality
Repaired units undergo testing, including burn-in tests with variable loads to evaluate output stability between +/- 10 volts. Serviceable repairs have passed Level 3 to Level 5 testing, indicating restored function within acceptable voltage ranges. LED indicators are also checked for correct operation during wand movement tests.
Service and repair your broken Balluff part
We can repair your Balluff model RH5TA0040U01D601V102 in our facility. Let our skilled technicians get your Balluff back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
