Repair
Repair Price: $ 2,656.00
Purchase
CSL Part Number: 74484

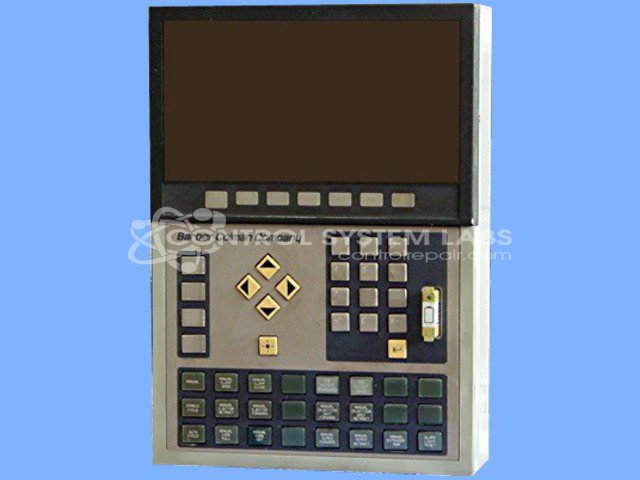

Product Overview: The Maco 4000 Keypad/LCD Screen Assembly (model 41AC-26103-219-5-A0) is an operator interface station for industrial control systems. It features a 640x480 pixel, 16-color LCD display with integrated keypad for system monitoring and control. Commonly used in paper processing and manufacturing environments, this operator station provides real-time system data visualization and parameter adjustment. The unit combines display electronics, backlight circuitry, keypad switches, and protective button covers in a single assembly designed for harsh industrial conditions.
Category: Operator Interface
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Manufacturer Part Number: 41AC-26103-219-5-A0
Series: MACO 4000 Operator Station
Brand: Barber-Colman
Also Known As(AKA): 41AC
Common Failures
One frequent issue with this product involves the display not working, often due to a cable connection concern. In many cases, a faulty connector and damaged wires leading to the backlight board may result in no output despite a 12-volt input.
Repair Approach
The standard repair procedure includes diagnostic testing of all buttons and the keypad. The repair process may involve rewiring or replacing faulty connectors to restore the connection between the backlight display and the circuit board. Additionally, buttons may be sticky or sensitive, and missing button covers are not included in the standard repair price. Customers can request the replacement of button covers at an additional cost.
Testing & Quality
Post-repair testing is performed to validate functionality, with tests confirming that the display works and the buttons are functional. The product undergoes comprehensive testing to validate the repair quality.
Service and repair your broken Barber-Colman part
We can repair your Barber-Colman model 41AC-26103-219-5-A0 in our facility. Let our skilled technicians get your Barber-Colman back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
