Barber-Colman 80AA-10006-000-0-00 Maco 8000 Monochrome Operator Station with Touchscreen

Repair

Repair Price: $ 1,432.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/29797/image_1920?unique=40d0694
  • Condition

Purchase Price: $ 0.00 $ 0.00 1432.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 10378

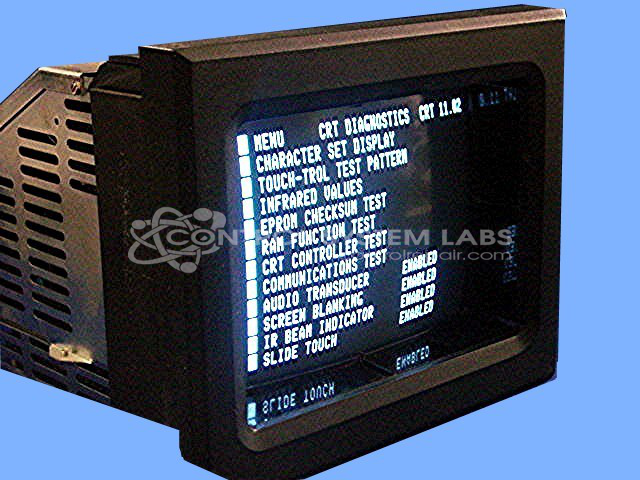

Product Overview: A monochrome CRT operator interface station with an infrared touchscreen, serving as the human-machine interface for injection molding machine controls. It displays process parameters and accepts operator input, communicating with the control system to manage and monitor molding operations.
Category: Barber Colman MACO Controls
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Manufacturer Part Number: 80AA-10006-000-0-00
Series: MACO 8000 Injection Molding Controls
Brand: Barber-Colman

Common Failures

Several recurring issues have been identified with this product, including video lock-up, faint video, and erratic touchscreen behavior. There have also been reports of video fading in and out due to vibrations, horizontal video shifts, and control problems caused by overheated connectors and weak CRTs. Additionally, improper packing has led to physical damage such as bent or cracked boards.

Repair Approach

The repair process typically involves replacing failed components like electrolytic capacitors, ICs, and connectors. Additional measures include resoldering faulty joints, adjusting picture settings, and cleaning optical components such as infrared grids and LEDs. In cases where the CRT cannot be rejuvenated, it may be replaced alongside necessary parts on the CPU board. Physical repairs may also involve straightening bent boards and ensuring reliable mounting.

Testing & Quality

To ensure quality and reliability, repaired units undergo thorough testing. This includes communication tests, diagnostic runs, and extended burn-in periods ranging from several hours to multiple days. Shock testing may also be performed to identify intermittent issues not immediately apparent during initial repairs.

Service and repair your broken Barber-Colman part


We can repair your Barber-Colman model 80AA-10006-000-0-00 in our facility. Let our skilled technicians get your Barber-Colman back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
