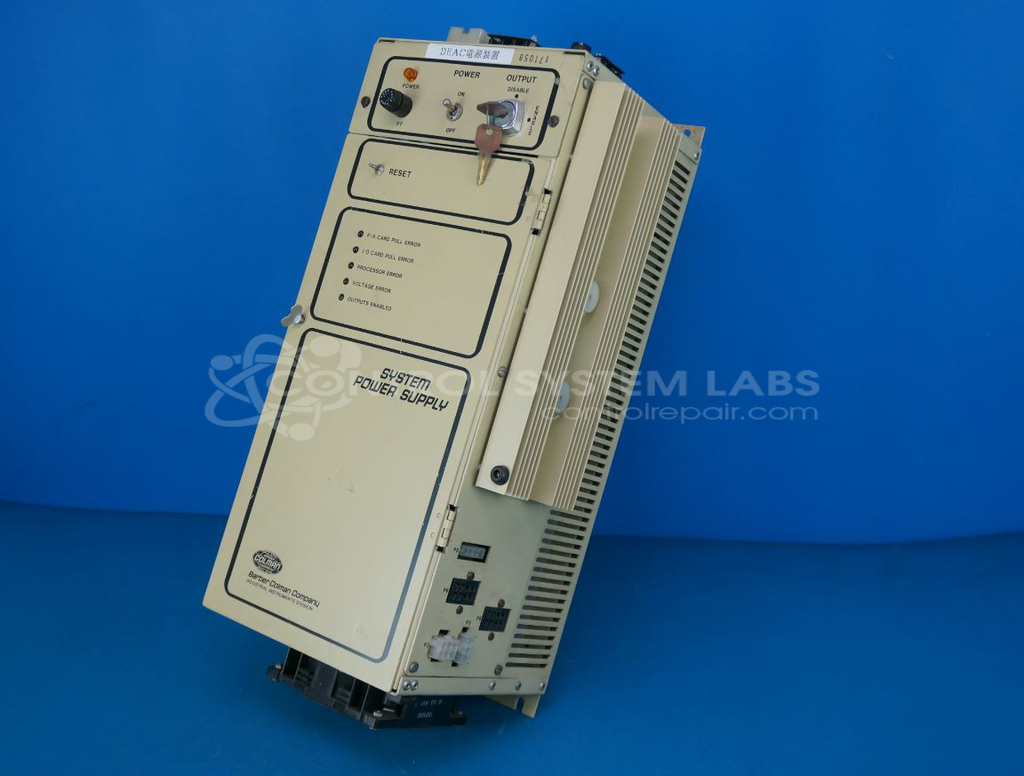

Barber-Colman A-12385 Power Supply
Repair
Repair Price: $ 1,320.00
Purchase
CSL Part Number: 81126
Product Overview: This power supply module delivers regulated low-voltage outputs including +5V, +/-5V, +12V, and +/-15V for industrial process control systems. Built around a 28V center-tapped transformer with fan cooling, it powers MACO controllers used in paper machine and manufacturing automation applications.
Category: Barber Colman MACO Controls
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Manufacturer Part Number: A-12385
Brand: Barber-Colman
Power supplies are tested with a minimum 4-hour burn-in, under load.
Common Failures
Units submitted for evaluation have shown processor errors and voltage errors, often accompanied by a blown fuse. These problems are frequently linked to an open or overheated transformer, cracked 115VAC fans, and issues with capacitors and resistors.
Repair Approach
The repair process typically involves replacing critical components such as the low voltage transformer, fast-acting fuses, electrolytic capacitors, 100k Ohm resistors, and 115VAC fans. These replacements address the open circuits and overheating issues that may be present.
Testing & Quality
Post-repair, units undergo thorough testing to ensure voltage specifications are met (+5V, +/-5V RAM, +12V, +/-15V). The testing phase spans three days to verify the reliability and stability of the repairs before the devices are returned.
Service and repair your broken Barber-Colman part
We can repair your Barber-Colman model A-12385 in our facility. Let our skilled technicians get your Barber-Colman back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
