Repair
Repair Price: $ 1,260.00
Purchase
CSL Part Number: 57933

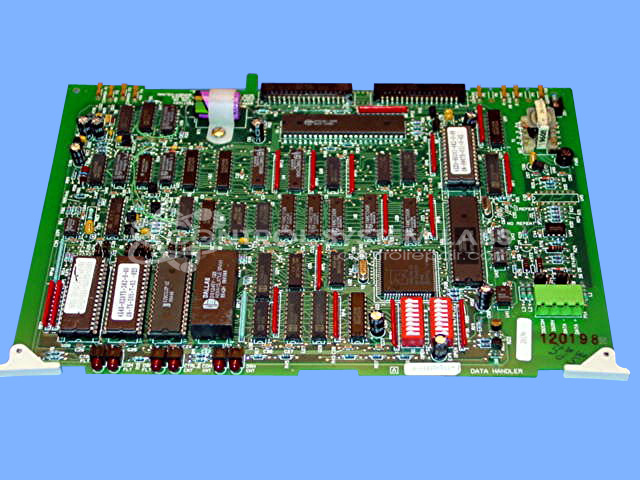

Product Overview: The Maco 4000/6000 Data Handler Board is a communication interface board used in Barber Colman Maco 4000 and 6000 series controllers, commonly found in paper manufacturing and converting equipment. It manages data exchange between the main controller and input/output modules in the rack, enabling system-wide communication and coordination. The board features dual-port SRAM for data buffering, programmable logic arrays for signal processing, and EEPROM for storing configuration parameters. Communication failures or inability to recognize other rack modules typically indicate board malfunction.
Category: Control Board
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Manufacturer Part Number: A-60010-70E
Series: MACO 4000 6000
Brand: Barber-Colman
Common Failures
Common issues with this product include errors such as "COM ERROR FAULT" and "No Analog input." These errors have been associated with circuit board concerns, often involving corrosion that can impact communication and recognition of other cards in the rack.
Repair Approach
Repairs may involve addressing circuit board trace issues and removing corrosion to restore functionality. In some cases, components such as DIP sockets, capacitors, and programmable arrays may be replaced to support stable operation. Additionally, copying programs and parameters from a working unit is a strategy that may be used to address incompatibility or configuration issues.
Testing & Quality
After repairs, boards undergo communication testing to confirm that previous problems have been addressed and the device operates as expected within the system. This quality assurance process supports reliability when the boards are returned to service.
Service and repair your broken Barber-Colman part
We can repair your Barber-Colman model A-60010-70E in our facility. Let our skilled technicians get your Barber-Colman back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
