Repair
Repair Price: $ 916.00
Purchase
CSL Part Number: 28999

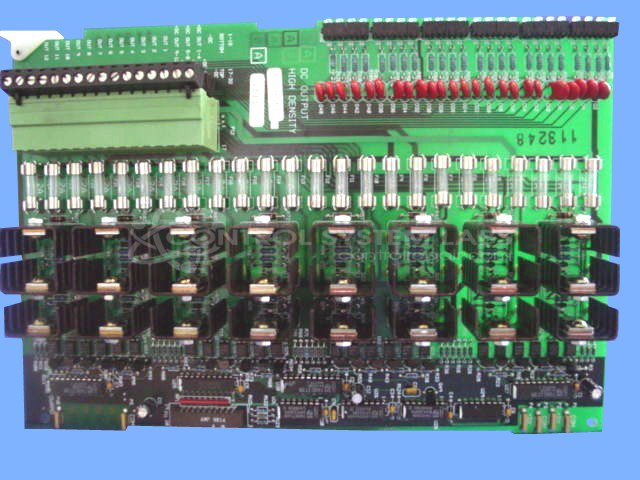

Product Overview: The Maco DC Output High Density Board (A-60068) is a multi-channel DC output module designed for industrial control systems in paper manufacturing and similar process environments. This board provides up to 24 discrete DC outputs at 28VDC, controlled through optoisolated channels for electrical isolation and noise immunity. It interfaces with Barber-Colman MACO distributed control systems to switch loads such as solenoids, indicators, and actuators. The board features individual 2A fast-blow fuses per output channel for protection and uses standard 5x20mm glass fuses for serviceability.
Category: Barber Colman MACO Controls
Manufacturer: Barber-Colman
Manufacturer Synonyms: Barber Coleman, Barbercolman, Invensys
Manufacturer Part Number: A-60068
Series: MACO
Brand: Barber-Colman
Common Failures
Common issues reported for this product include defective output boards, shorted diodes, and damaged optoisolators. Damage symptoms may involve open or missing fuses and visible burn marks on the PCB.
Repair Approach
Repairs typically involve replacing defective components such as fuses, optoisolators, and diodes. In cases of burn damage, the affected sections of the PCB may be repaired and protective coating applied to the repaired areas.
Testing & Quality
After repairs, products undergo testing including burn-in tests with load to verify functionality. Outputs are verified through testing jigs that cycle outputs in a programmed pattern. All ports are tested to confirm proper operation.
Service and repair your broken Barber-Colman part
We can repair your Barber-Colman model A-60068 in our facility. Let our skilled technicians get your Barber-Colman back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
