Repair
Repair Price: $ 1,176.00
Purchase
CSL Part Number: 104490

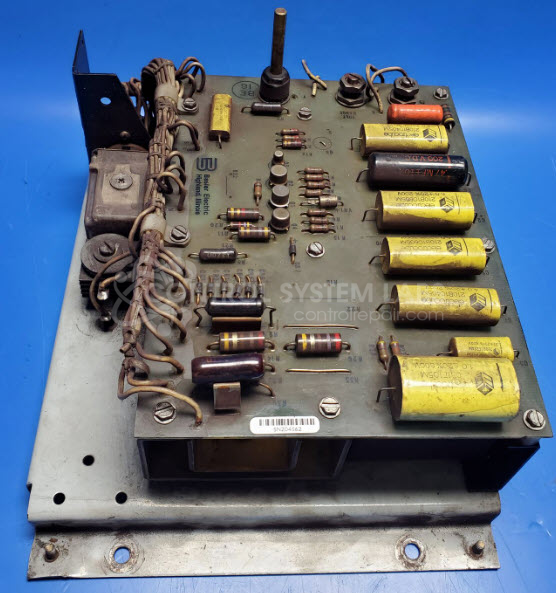

Product Overview: The Basler Electric SR6A Series Static Voltage Regulator (model 90-82500-100) controls generator field excitation to maintain stable output voltage. It monitors generator voltage and adjusts the exciter field current accordingly, ensuring consistent power delivery in generator systems. Common in industrial power generation applications, it features adjustable voltage setpoints via panel-mounted potentiometers and uses solid-state control circuitry. The unit regulates field strength through F+/F- output terminals connected to the generator's excitation system.
Category: Control Assembly
Manufacturer: Basler Electric
Manufacturer Part Number: 90-82500-100
Series: SR6A Series Static Voltage Regulator
Common Failures
Common issues with the Basler Voltage Regulator include erratic F+/F- output due to frayed field leads, noise contamination affecting field signals, and defective solder joints. Shipping-related damage, such as broken rheostats and incorrect components like AC relays instead of DC, are also reported. In some cases, unavailability of essential parts such as transformers and SE rectifiers may affect repairability.
Repair Approach
Repairs often involve cleaning and removing contaminants and debris, replacing damaged components such as resistors, rheostats, and relays, and addressing solder joint issues. Diagnostic testing is conducted to identify faulty parts, after which replacements are sourced if available. Conformal coatings may be applied or removed as needed during the repair process.
Testing & Quality
Each repaired unit undergoes thorough testing, including adjustment pot functionality checks and burn-in tests with load to ensure reliability. In some cases, units may be returned unrepaired due to unavailability of critical parts.
Service and repair your broken Basler Electric part
We can repair your Basler Electric model 90-82500-100 in our facility. Let our skilled technicians get your Basler Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
