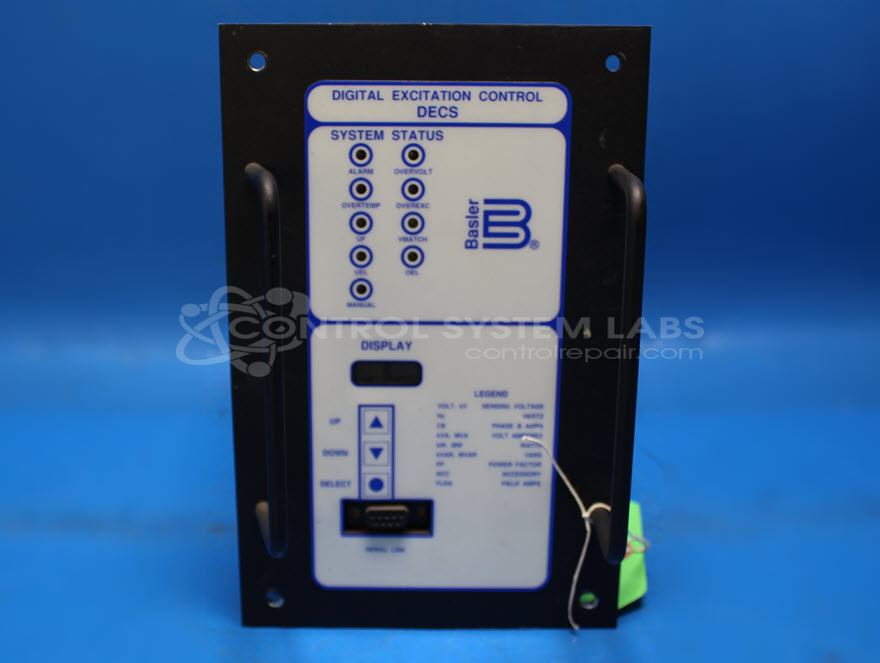

Basler Electric DECS63-15-B2C5V Digital Excitation Control, 120VAC, 1570VA
Repair
Repair Price: $ 2,524.00
Purchase
CSL Part Number: 86898
Product Overview: A microprocessor-based digital excitation control system that regulates generator field excitation to maintain stable output voltage. Operating from 120VAC at 1570VA, it provides automatic voltage regulation for synchronous generators in power generation applications such as hydroelectric plants, with menu-driven digital configuration and built-in protective functions.
Category: Control Assembly
Manufacturer: Basler Electric
Manufacturer Part Number: DECS63-15-B2C5V
Common Failures
Two units were received for evaluation. One unit was reported to have no output when powered on. Another unit was reported to trigger the hydro generator's protective shutdown upon activation. Evaluation identified issues on the power and CPU boards, where multiple electrolytic capacitors were found to be leaking, shorted, or out of specification. Additionally, a component on the power board was found to be shorted.
Repair Approach
The repair process involved diagnostics using test equipment. Faulty components, including leaking capacitors and a shorted component on the power board, were replaced.
Testing & Quality
Following repair, each unit was tested to verify functionality. Testing confirmed that digital activity was normal, keyboard functionality was operational, and no errors were evident when navigating through the menu. Units were returned to the customers.
Service and repair your broken Basler Electric part
We can repair your Basler Electric model DECS63-15-B2C5V in our facility. Let our skilled technicians get your Basler Electric back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
