Repair
Repair Price: $ 1,504.00
Purchase
CSL Part Number: 83247

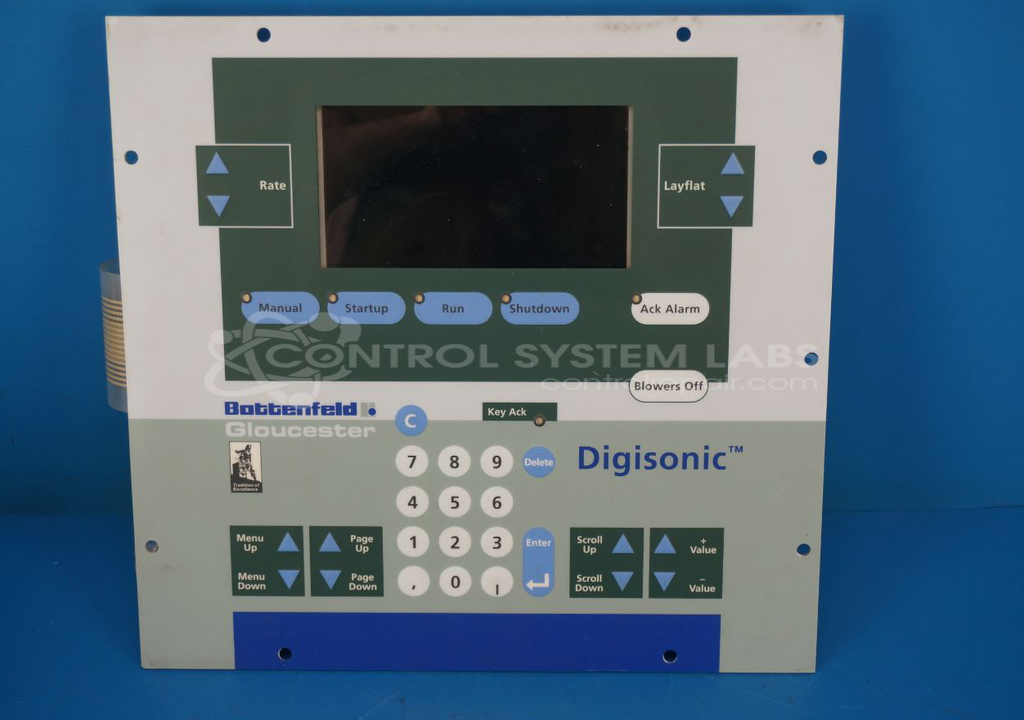

Product Overview: The Digisonic Display Interface Panel (PC06506) is a human-machine interface module manufactured by Battenfeld Gloucester for plastics processing machinery. It features a 5.4-inch monochrome LCD screen with 240×128 resolution, membrane keypad with multiple buttons, and serial RS-232 communication capability. The panel includes onboard SRAM for display memory, DC-DC converters for LCD bias voltage generation, an FPGA controlled via JTAG interface, and operates on multiple internal voltages (5V, 3.3V, 2.5V, 1.2V). It serves as the primary operator control and status display interface for Battenfeld Gloucester extrusion and molding equipment.
Category: Operator & Control Panels
Manufacturer: Battenfeld Gloucester
Manufacturer Part Number: PC06506
Series: Digisonic
Repair price is the base price for the repair of the unit. Replacement membrane keyboards and displays are available for this unit at additional cost. The unit will be evaluated when received to determine if replacement parts are required.
Common Failures
Common issues observed with this product include display-related concerns such as blank screens or blue screens, power-up failures, and defective keypad or backlight components. Blown fuses and SRAM chip failures have also been noted as contributing factors in non-functional displays.
Repair Approach
Repairs may involve replacement of faulty components such as SRAM chips, fuses, and membrane keypads. Display contrast adjustments and component-level work on inductors or other power-related parts may be performed as needed. Mechanical components such as standoffs are reattached or replaced when required to restore unit stability. The specific repair approach depends on the findings during evaluation.
Testing & Quality
Following repairs, units undergo testing to verify functionality. Testing may include burn-in procedures with and without load, as well as fixture-based testing to confirm proper operation. Functional repairs are reviewed by CSL technicians to verify quality and reliability.
Service and repair your broken Battenfeld Gloucester part
We can repair your Battenfeld Gloucester model PC06506 in our facility. Let our skilled technicians get your Battenfeld Gloucester back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
