Repair
Repair Price: $ 2,816.00
Purchase
CSL Part Number: 70740

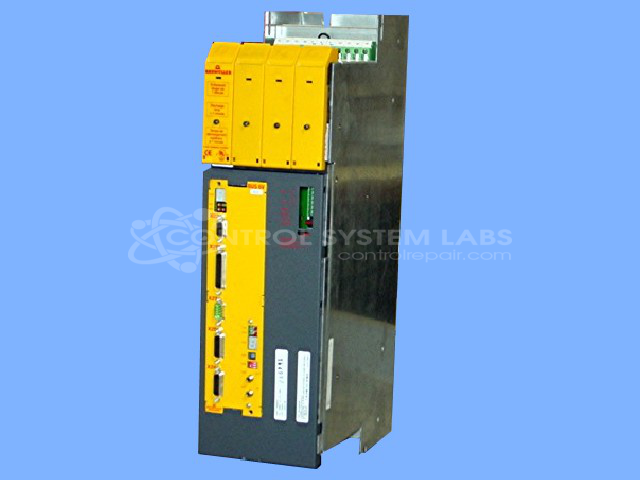

Product Overview: The Baumuller Nurnberg BUM61-40/60-54-B-M-13 is a servo drive controller with integrated power supply used in paper manufacturing and industrial automation systems. It regulates servo motor speed, position, and torque in applications requiring precise motion control. The unit features IGBT-based power electronics, optocoupler isolation circuits, and thermal monitoring for reliable operation in demanding production environments. This model is part of the BUM61/BUS6V servo controller family designed for synchronized multi-axis control in paper processing machinery.
Category: Servo Controls
Manufacturer: Baumuller Nurnberg
Manufacturer Part Number: BUM61-40/60-54-B-M-13
Include your servo motor / Need for final testing.
Common Failures
The most frequent issue identified was a defective optocoupler, which caused internal connectivity errors. Additionally, an amber-colored tar-like substance was found inside the unit, affecting some wire harness insulators.
Repair Approach
Repairs involved replacing the faulty optocoupler and various capacitors. The units were also opened for cleaning and inspection due to the presence of foreign substances. Repairs were limited based on available test capability without additional components.
Testing & Quality
Testing was performed at the component level due to the absence of matching servo motors and connection cables required for full system testing. The repairs passed component-level functional testing focusing on basic functionality and component integrity.
Additional Notes
We recommend inspecting your facility for any substances that may be dripping onto the units before returning them to service. Full system testing should be conducted once the units are reinstalled in your equipment.
Service and repair your broken Baumuller Nurnberg part
We can repair your Baumuller Nurnberg model BUM61-40/60-54-B-M-13 in our facility. Let our skilled technicians get your Baumuller Nurnberg back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
