Repair Price: $ 1,856.00
Purchase
CSL Part Number: 44611

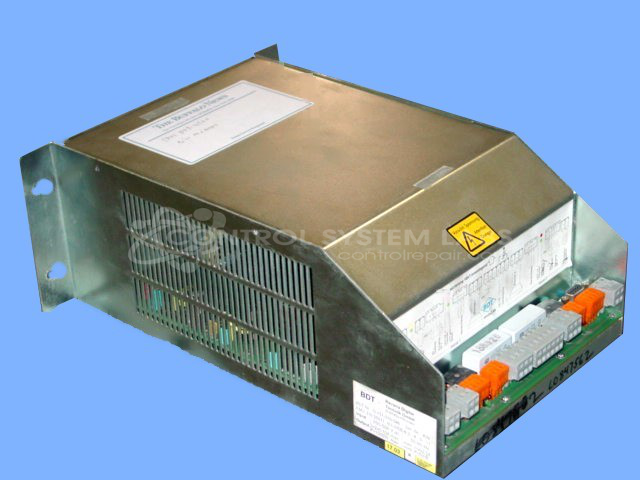

Product Overview: The BDT G.151-010-046 is a two-channel electronic brake control used in paper manufacturing and converting equipment. It provides precise control of electromagnetic brakes through dual independent channels, each capable of managing brake excitation and holding voltages. The unit features relay-based output stages, optocoupler isolation, and microcontroller-based control circuitry. Common applications include web tension control systems, roll positioning, and inertia management in paper processing machinery where synchronized or independent braking of multiple axes is required.
Category: Clutch / Brake Controls
Manufacturer: BDT
Manufacturer Synonyms: Bavaria Digital Technik
Manufacturer Part Number: G.151-010-046
When shipping this item use extra wrapping / bubble wrap to prevent damage during shippment.
Common Failures
Some units experienced random intermittent brake engagement, while others had issues such as overload or inconsistent channel activation. Common symptoms included damaged capacitors, resistors, relays, and optocouplers. Mechanical issues like bent transformer mounts and warped covers were also reported, potentially due to physical impacts.
Repair Approach
Repairs often involved replacing defective components such as electrolytic capacitors, resistors, and relays. Detailed diagnostic testing was performed to identify faulty parts and ensure consistency between channels. Some mechanical adjustments were necessary, like straightening bent components and securing loose connections to restore mechanical integrity.
Testing & Quality
Units underwent thorough testing, including burn-in tests with load, to verify repair effectiveness. Successful repairs passed level-specific testing protocols, while some units were deemed Beyond Economic Repair due to extensive damage or unresolved issues. Consistent testing ensured repaired units met operational standards before being returned to service.
Service and repair your broken BDT part
We can repair your BDT model G.151-010-046 in our facility. Let our skilled technicians get your BDT back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
