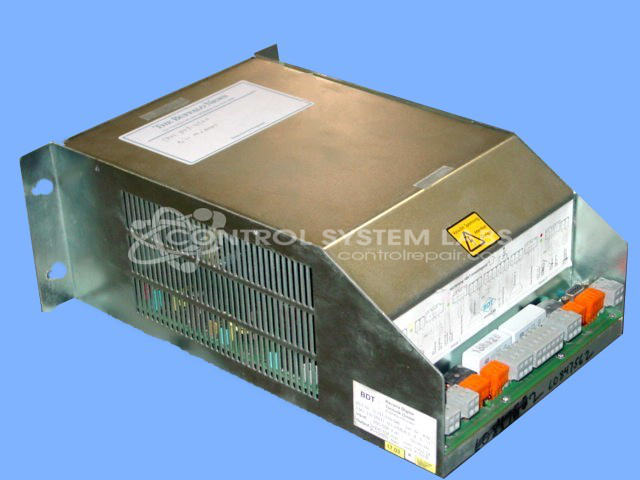

BDT G.151-010-048 2 Channel Electronic Brake Control
Repair
Repair Price: $ 2,116.00
Purchase
CSL Part Number: 80026
Product Overview: A two-channel electronic brake control that regulates electromagnetic brake operation across two independent output channels. Commonly used in web tension and winding systems such as paper handling and converting equipment. Features programmable output chips, isolation transformers, and a low-voltage regulated supply for driving brake coils.
Category: Clutch / Brake Controls
Manufacturer: BDT
Manufacturer Synonyms: Bavaria Digital Technik
Manufacturer Part Number: G.151-010-048
When shipping this item use extra wrapping / bubble wrap to prevent damage during shippment.
Common Failures
Several issues have been identified in the repair history of this product, including units not powering up due to faulty low voltage capacitors, units failing to start with no response on power application, and components being damaged from physical impact. Additionally, some units showed issues stemming from internal contamination.
Repair Approach
For units that would not power up, problematic low voltage capacitors were replaced. In cases where the response to power was absent, voltage regulators and other components were replaced. When damage from physical impact was noted, parts such as bent frames and cracked output coils were assessed for reparability. Units exposed to contamination were thoroughly cleaned before further testing.
Testing & Quality
Repaired units underwent testing, including burn-in tests for several hours to verify stability and reliability. Units were often tested under loaded conditions to confirm operational performance. For units returned unrepaired, damage was verified and documented.
Service and repair your broken BDT part
We can repair your BDT model G.151-010-048 in our facility. Let our skilled technicians get your BDT back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
