Repair
Repair Price: $ 1,994.00
Purchase
CSL Part Number: 115663
Product Overview: The Beckhoff CP7911-1012-0000 is a 12.1-inch industrial touchscreen panel designed for human-machine interface applications in manufacturing and process control environments. It combines an LCD display with integrated touch capability, typically mounted using vibration-isolating rubber mounts for durability in industrial settings. The unit operates on 24VDC power and features separate backlight driver circuitry. This panel is commonly used in paper manufacturing and other automated production lines where operators need direct interaction with control systems.
Category: Operator / Monitor Workstation
Manufacturer: Beckhoff

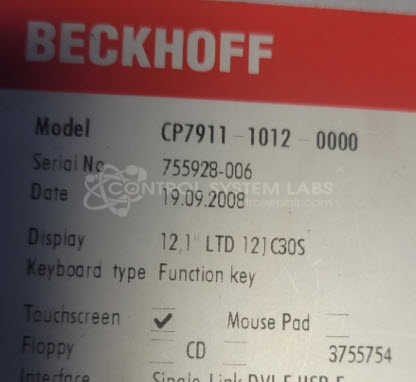

Manufacturer Part Number: CP7911-1012-0000
Please include wiring diagrams and manuals when sending in.
Common Failures
Common issues encountered with this product include a non-functioning backlight on the LCD display. In several instances, the backlight does not activate despite the unit powering up successfully. Additionally, issues with the backlight driver may affect performance.
Repair Approach
Repairs may involve bypassing the backlight driver to directly drive the display backlight, allowing the screen to illuminate. Troubleshooting includes verifying the backlight driver functionality and replacing defective vibration-isolating mounts where needed. In some cases, creating an interface cable for LCD testing is attempted, though documentation availability can affect this process. Vibration isolation mounts are replaced when necessary to ensure stability.
Testing & Quality
Testing procedures include independent LCD testing and basic power-up assessments. These tests confirm that the unit powers on without unusual current draw, but comprehensive system tests and touchscreen verification are not available. Testing results may indicate that some components function as expected, though outcomes can vary. Repairs are performed on an hourly Time & Materials basis and are not warrantied.
Service and repair your broken Beckhoff part
We can repair your Beckhoff model CP7911-1012-0000 in our facility. Let our skilled technicians get your Beckhoff back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
