Repair
Repair Price: $ 984.00
Purchase
CSL Part Number: 103817

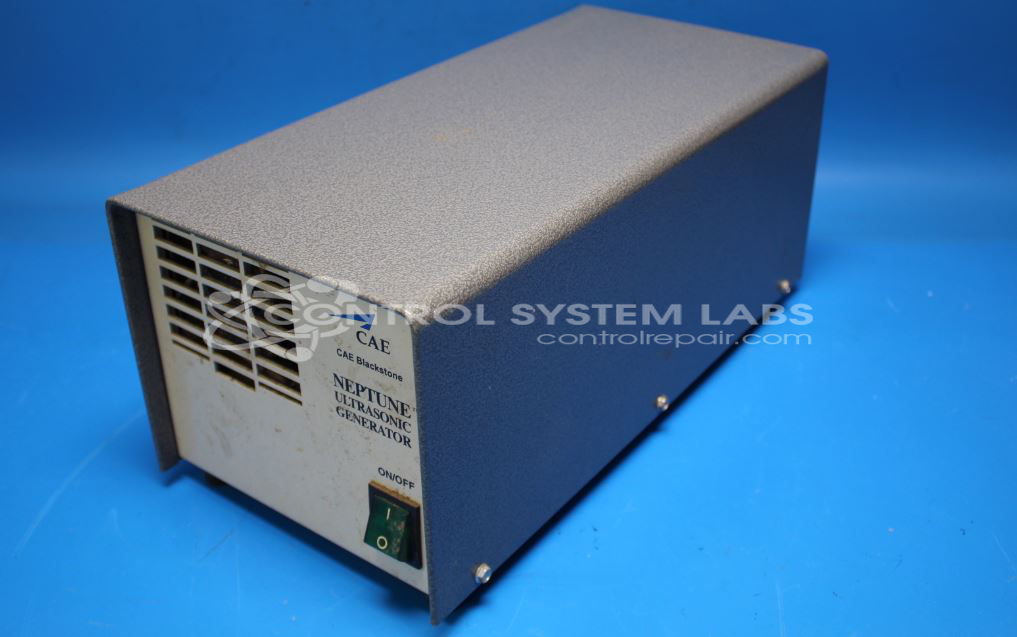

Product Overview: The Neptune Ultrasonic Generator is a high-power ultrasonic frequency generator manufactured by Blackstone-NEY Ultrasonics. It converts standard AC input power into high-frequency electrical signals that drive ultrasonic transducers for industrial cleaning, welding, or processing applications. This model operates at 240V and features IGBT-based output stages capable of delivering up to 1000W. It can function as either a master or slave unit in multi-generator configurations and includes built-in protection circuitry. Common applications include ultrasonic cleaning tanks, plastic welding systems, and sonochemical processing equipment.
Category: Ultrasonics
Manufacturer: Blackstone-NEY Ultrasonics
Manufacturer Part Number: N1000-XHK01-240-1000/24
Series: Neptune Ultrasonic Generator
Ultrasonic Generators are tested with a minimum 4-hour burn-in, under load.
Common Failures
Common issues observed with this product include blown fuses, lack of output, and units not functioning. Defective components such as IGBTs, contactors, and NAND gates have been identified during evaluation. Issues such as open circuit board traces and defective transformers have also been observed.
Repair Approach
Repairs typically involve replacing defective components and performing necessary cleaning and soldering. Diagnostic testing is employed to identify issues such as defective circuit traces or seized components. Some repairs require extended cleaning processes or circuit board trace repairs.
Testing & Quality
After repair, products undergo comprehensive testing, including burn-in tests with loads and level 2 or 4 testing. Testing routines vary but often involve verifying proper output signals with oscilloscopes or ensuring all ports and functions operate as expected. Repairs are co-checked by different team members to maintain quality assurance.
Service and repair your broken Blackstone-NEY Ultrasonics part
We can repair your Blackstone-NEY Ultrasonics model N1000-XHK01-240-1000/24 in our facility. Let our skilled technicians get your Blackstone-NEY Ultrasonics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
