Repair
Repair Price: $ 984.00
Purchase
CSL Part Number: 103816

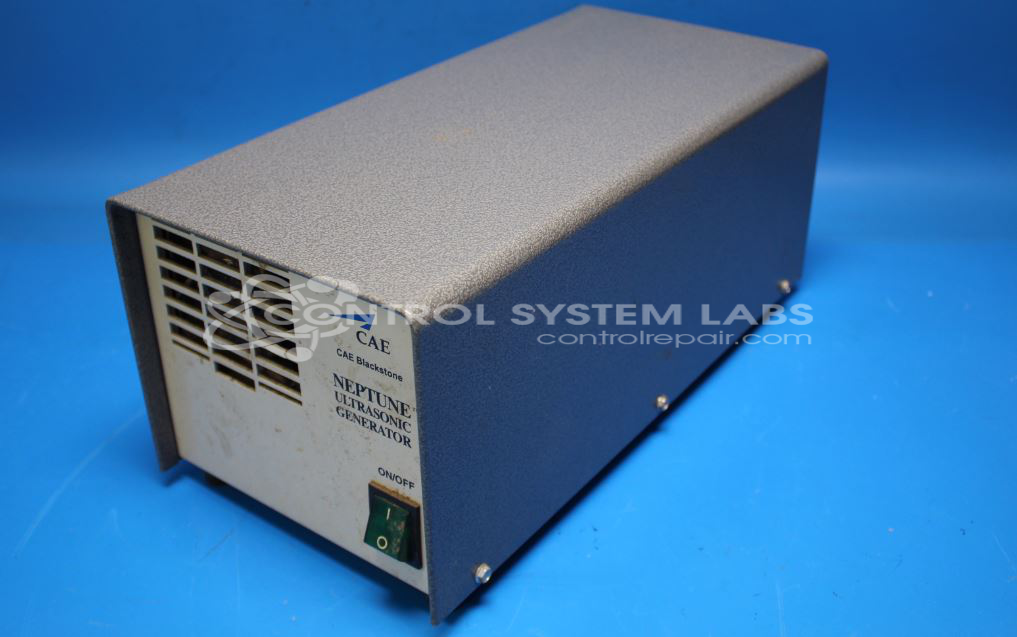

Product Overview: The Neptune Ultrasonic Generator is a high-power industrial ultrasonic driver manufactured by Blackstone-NEY Ultrasonics. It converts AC line voltage into high-frequency electrical energy to drive ultrasonic transducers used in cleaning, welding, or processing applications. This model (N1000C-XBCPA-240-24T) operates on 240V at 5.5A and is part of the N1000 series. It features control and power boards with IGBT-based output stages, microprocessor control, and can be configured as master or slave in multi-transducer systems. Common in ultrasonic cleaning tanks and other precision ultrasonic equipment.
Category: Ultrasonics
Manufacturer: Blackstone-NEY Ultrasonics
Manufacturer Part Number: N1000C-XBCPA-240-24T
Series: Neptune Ultrasonic Generator
Ultrasonic Generators are tested with a minimum 4-hour burn-in, under load.
Common Failures
Several recurring issues have been identified with this product, including corrosion and defective components such as capacitors and IGBTs. Other observed symptoms include no output and audible noise upon operation. High ESR in capacitors and intermittent power switches have also been problematic.
Repair Approach
Repairs typically involve replacing defective components such as capacitors, IGBTs, and power switches. Cleaning to remove oil and corrosion is often required, especially around solder joints. Resoldering of critical connections has proven effective in addressing some solder joint issues.
Testing & Quality
Units undergo diagnostic testing and burn-in tests with a load to verify functionality. Standard and extended cleaning processes are employed to ensure that units are free from contaminants. Repaired units pass through multiple levels of testing to verify that all functions are operational.
Service and repair your broken Blackstone-NEY Ultrasonics part
We can repair your Blackstone-NEY Ultrasonics model N1000C-XBCPA-240-24T in our facility. Let our skilled technicians get your Blackstone-NEY Ultrasonics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
