Bobst 0701223801 Punch Machine Processor Boards
Repair
Call for price
Purchase
CSL Part Number: 114902

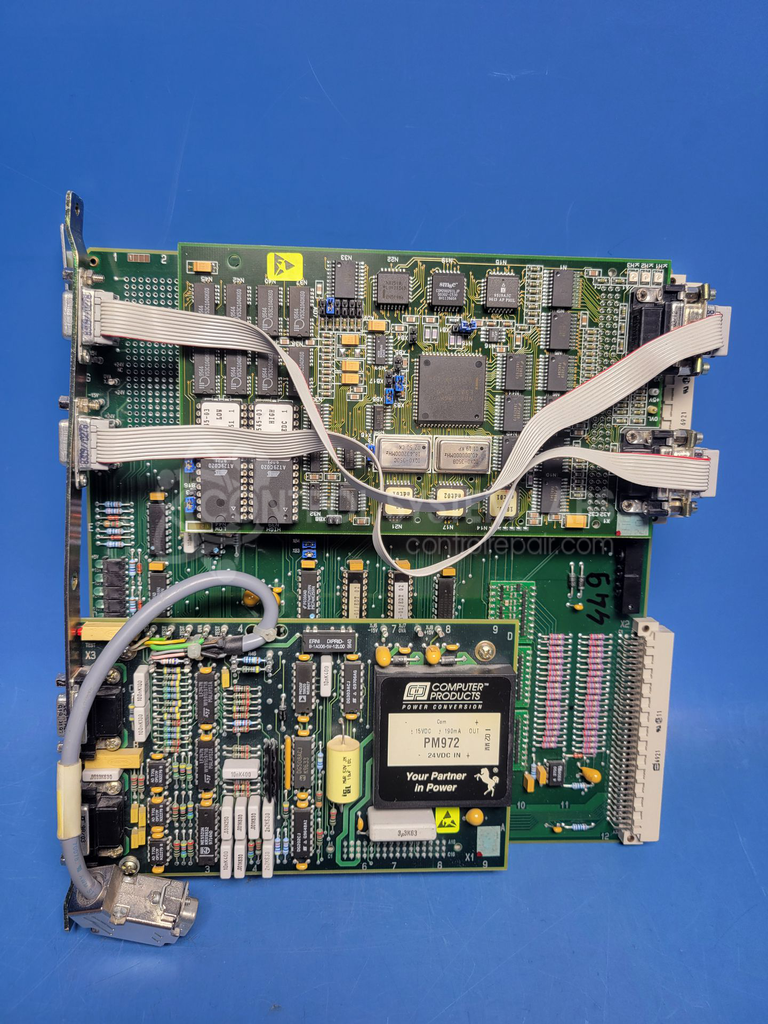

Product Overview: The Bobst 0701223801 is a processor board designed for punch machines used in packaging and paper converting operations. It processes photocell sensor inputs that detect material position and trigger punch timing. The board features ±15V and +24V power supplies, microprocessor control, and connects to photoeye sensors via a backplane interface (X2A13). A small daughter card handles sensor signal conditioning. This processor is critical for coordinating punch actuation with material feed in Bobst die-cutting and punching equipment.
Category: Processor Cards & Modules
Manufacturer: Bobst
Manufacturer Synonyms: J. BOBST & FILS S.A.
Manufacturer Part Number: 0701223801
Limited Repair
The Bobst part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Bobst part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
