Repair
Call for price
Purchase
CSL Part Number: 115537

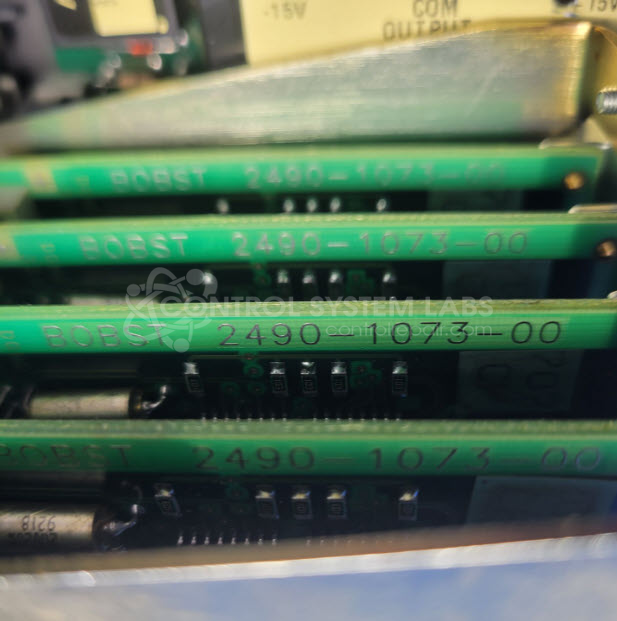

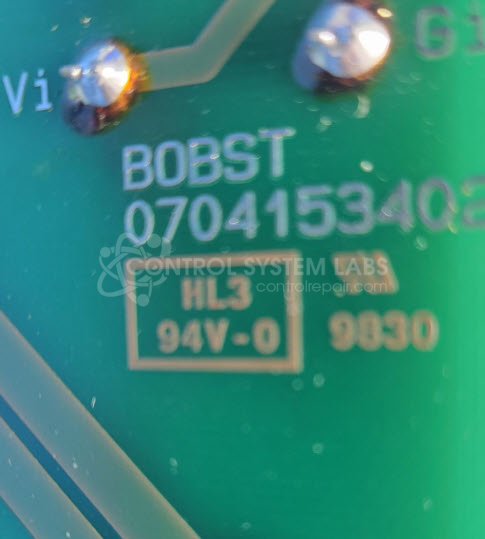

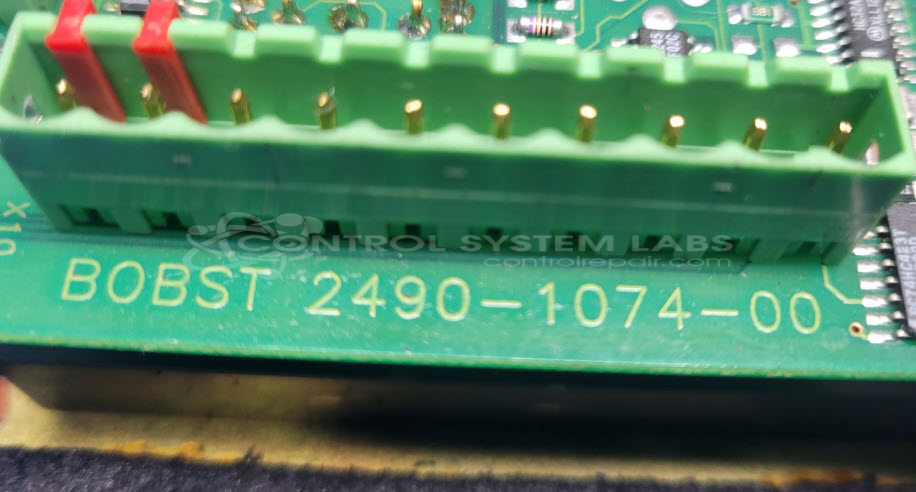

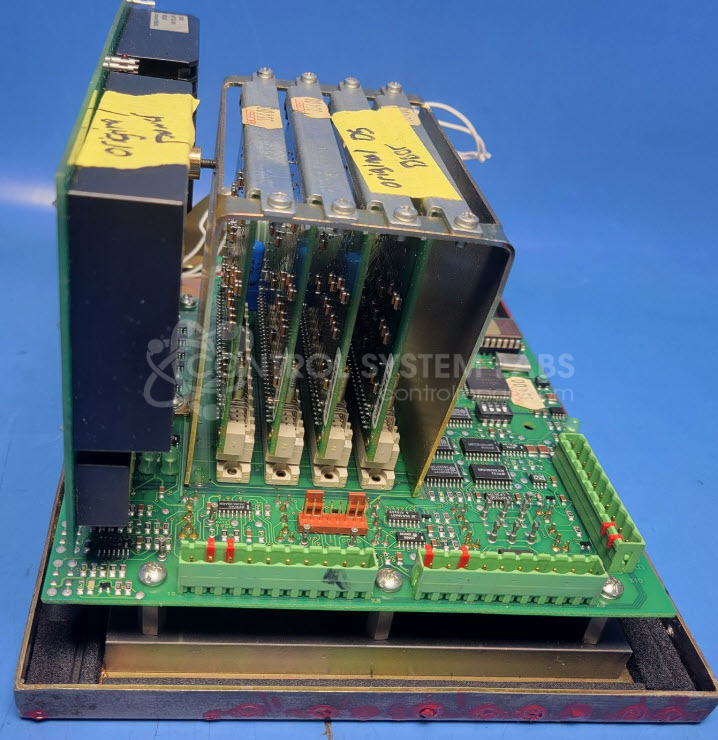

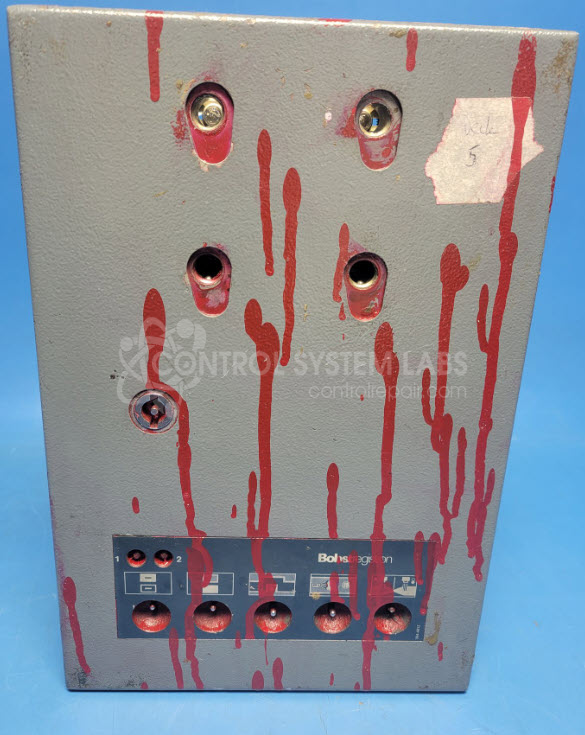

Product Overview: The Operator Assembly is a multi-board control panel system manufactured by Bobst/Registron for industrial machinery operation. It consists of a main board (2490-1074-00), power card (0704153402), and multiple riser cards (2490-1073-00) housed in a door assembly frame. The system provides operator interface and control functions, utilizing DC-DC converters that supply 5V and ±15V power rails. It incorporates photo detectors connected via ribbon cable for sensing applications. This assembly is commonly used in Bobst packaging and printing equipment for process monitoring and machine control.
Category: Operator & Control Panels
Manufacturer: Bobst
Manufacturer Synonyms: J. BOBST & FILS S.A.
Alternate Manufacturer Names: Registron
Manufacturer Part Number: 2490-1074-00 with 0704153402 and 2490-1073-00
Other Synonyms: Registron
Limited Repair
The Bobst part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Bobst part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
