CSL Part Number: 86984

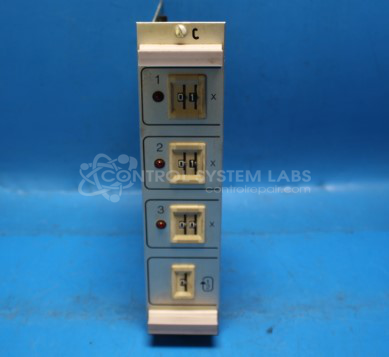

Product Overview: A control board featuring thumbwheel switches for operator setpoint entry and sequence control in industrial printing and converting machinery, such as folder-gluers used in paper and packaging production. Incorporates decade counter circuits for up/down pull-position tracking and output control.
Category: Control Board
Manufacturer: Bobst
Manufacturer Synonyms: J. BOBST & FILS S.A.
Manufacturer Part Number: 701-1488-00
Also Known As(AKA): 701 YG
701-1488-00 701YG 701-1559-00 701YH 701-1552-01 700YZ 700VE
Common Failures
This product may experience control system issues where the unit does not return to the initial setting from the secondary setting. This condition has been associated with components within the decade counters.
Repair Approach
Repairs may involve replacing components within the thumbwheel up/down counter circuit. Each unit is evaluated individually. In some cases, the reported issue may not be replicated during testing, but evaluation findings have indicated decade counter components as a common area of concern.
Service and repair your broken Bobst part
We can repair your Bobst model 701-1488-00 in our facility. Let our skilled technicians get your Bobst back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
