Repair Price: $ 1,936.00
Purchase
CSL Part Number: 18113

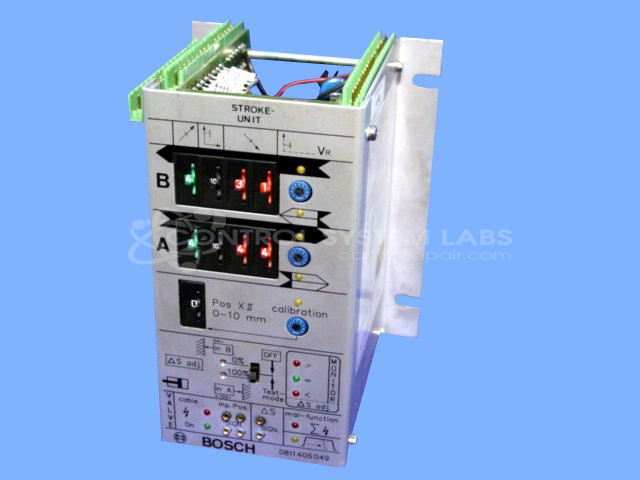

Product Overview: The Bosch 0 811 405 049 Stroke Unit 2 is a hydraulic valve amplifier module designed for position-dependent reversing control in hydraulic systems. This valve driver card provides precise control signals to proportional hydraulic valves, enabling accurate positioning and stroke control. It is commonly used in injection molding machines, blow molding equipment, and other industrial hydraulic applications requiring programmable position control. The module features adjustable calibration potentiometers, built-in test modes, and voltage outputs typically ranging ±9V for valve command signals. It connects between control systems and proportional hydraulic valves to regulate flow and direction.
Category: Valve Driver / Amplifier Card
Manufacturer: Bosch
Manufacturer Synonyms: Robert Bosch
Alternate Manufacturer Names: BEKUM, HAMAC, SKIL BOSCH, REXROTH
Manufacturer Part Number: 0 811 405 049
Series: Hydraulic Valve Amplifier - Stroke Module
Also Known As(AKA): 0811405049
Other Synonyms: BEKUM, HAMAC, SKIL BOSCH, REXROTH
Stroke - Modul for position-dependent reversing
Common Failures
Some of the common issues related to this product include control non-responsiveness, calibration problems, and faulty adjustment pots. These symptoms can occasionally result from worn or defective components such as capacitors and trimmer potentiometers.
Repair Approach
The typical repair procedure involves comprehensive diagnostic tests to identify any malfunctioning components. Components such as calibration and adjustment pots may require replacement. Adjustments and recalibration are performed as needed.
Testing & Quality
Repaired units undergo testing, including burn-in tests with load, to verify performance. Successful repair outcomes include passing standardized testing procedures. Coordination between diagnostics and testing supports quality and reliability before units are returned.
Service and repair your broken Bosch part
We can repair your Bosch model 0 811 405 049 in our facility. Let our skilled technicians get your Bosch back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
