Repair
Repair Price: $ 874.00
Purchase
CSL Part Number: 36384

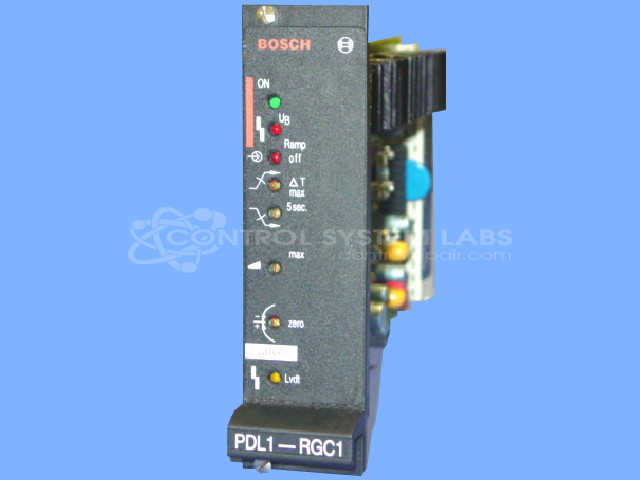

Product Overview: The Bosch (Rexroth) 0 811 405 100 Valve Amplifier With Ramps PDL 1-RGC1 is a proportional amplifier card designed to control electrohydraulic proportional valves in industrial systems. It provides precise command signals with adjustable ramp functions to regulate valve position and hydraulic flow. Commonly used in hydraulic presses, injection molding machines, and automated manufacturing equipment where smooth, controlled valve actuation is critical. The unit operates on 6V to 36V supply and includes LVDT feedback circuitry for closed-loop position control.
Category: Valve Driver / Amplifier Card
Manufacturer: Bosch
Manufacturer Synonyms: Robert Bosch
Alternate Manufacturer Names: Rexroth
Manufacturer Part Number: 0 811 405 100
Series: 0 811 405 100-104 Valve Amplifier With Ramps
Also Known As(AKA): 811405100
Other Synonyms: Rexroth
Common Failures
Some units may experience issues with pump engagement or pressure buildup due to internal component faults. Common failures include open resistors that can cause persistent error indication.
Repair Approach
Repairs typically involve replacing defective components such as electrolytic capacitors and resistors. Component replacement is determined based on evaluation findings and may include capacitors and operational amplifiers to address reliability concerns.
Testing & Quality
Each repaired unit undergoes testing with appropriate load conditions to verify functionality. Repairs are verified through CSL testing procedures to confirm that operational standards are met.
Service and repair your broken Bosch part
We can repair your Bosch model 0 811 405 100 in our facility. Let our skilled technicians get your Bosch back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
