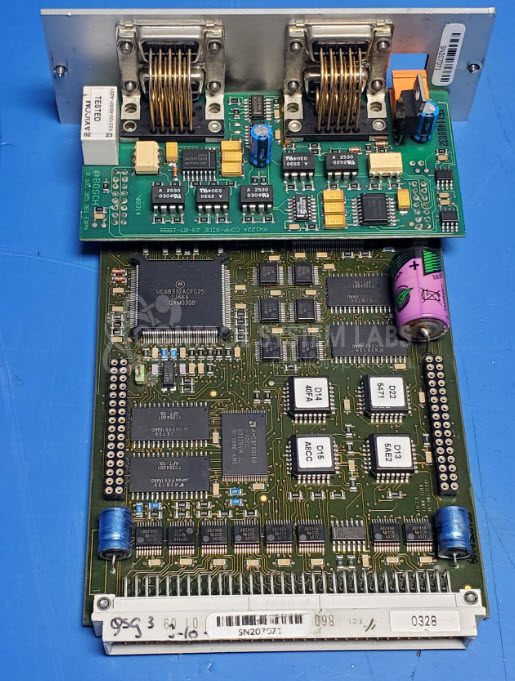

Bosch 8 101 305 360 & 8 101 305 361 Control Module with Daughter Card
Repair
Call for price
Purchase
CSL Part Number: 109317
Product Overview: The Bosch 8 101 305 360 & 8 101 305 361 is a two-piece control module consisting of a main board and daughter card used in industrial paper manufacturing equipment. It operates with dual power supplies (5V and 10V) and includes battery-backed memory for configuration retention. Common failure modes include degraded electrolytic capacitors and depleted lithium backup batteries, which can cause oscillation issues and memory loss. The module requires specialized testing procedures and cannot undergo full system-level testing outside of its host equipment.
Category: Input Card & Modules
Manufacturer: Bosch
Manufacturer Synonyms: Robert Bosch
Manufacturer Part Number: 8 101 305 360 & 8 101 305 361
Limited Repair
The Bosch part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Bosch part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
