Repair
Repair Price: $ 1,608.00
Purchase
CSL Part Number: 49748

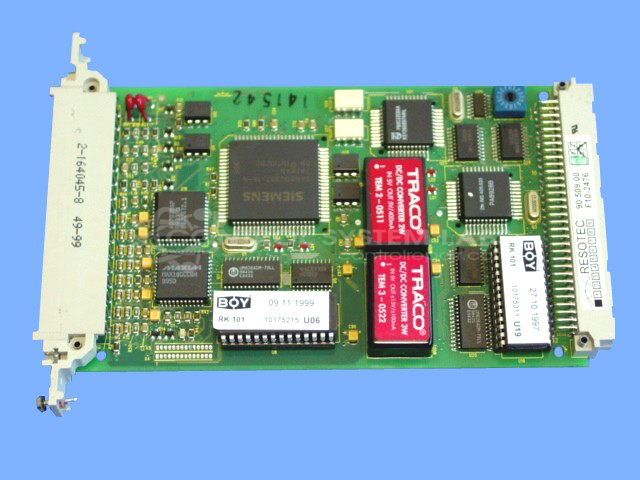

Product Overview: The RK 101 Control Board is a printed circuit board manufactured by Boy Machines for use in their industrial paper processing equipment. It features quad 14-bit digital-to-analog converters (DACs) for precise analog output control and multiple 2W DC/DC converters operating at 5VDC for power distribution. This board manages control functions in Boy Machines paper handling systems, processing digital commands and converting them to analog signals for motor control, positioning, or other automation tasks. The design supports parameter programming and storage for customized machine operation.
Category: Control Board
Manufacturer: Boy Machines
Manufacturer Part Number: 9626535
Limited repair/ 2 year Warranty applies to work done.
Common Failures
The primary symptom reported for this product is an error code indicating a problem with an internal card. This issue can arise from a malfunction in the power or signal conversion components.
Repair Approach
Repairs may involve replacing the DC/DC converter and digital-to-analog (D/A) converter components. Additionally, operational tasks may include copying essential program parameters to suitable media as part of the restoration process.
Testing & Quality
After repairs, the product undergoes testing procedures where voltages are applied, and the performance of the converters and related digital activities is verified before the product is returned.
Service and repair your broken Boy Machines part
We can repair your Boy Machines model 9626535 in our facility. Let our skilled technicians get your Boy Machines back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
