Repair Price: $ 1,984.00
Purchase
CSL Part Number: 116764

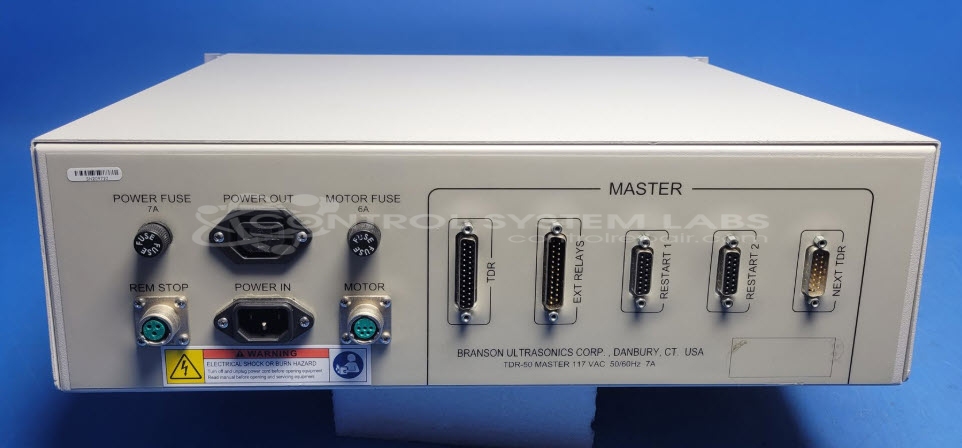

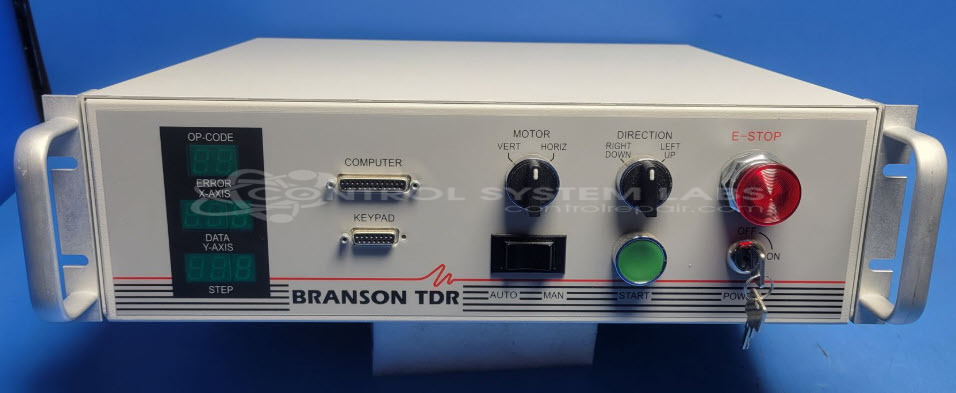

Product Overview: The Branson TDR 50 is a DC motor controller designed for batch transport systems in paper processing applications. It regulates servo motor operation through digital control circuitry with LED displays for status monitoring. The controller requires an external keypad for motor activation and movement commands. It operates on 120VAC input power and provides regulated 5VDC and 12VDC outputs to drive connected motors and control logic.
Category: Motor Controls
Manufacturer: Branson
Manufacturer Part Number: TDR 50
Please include wiring diagrams and manuals
Common Failures
The TDR 50 controller may experience issues where the LED displays fail to light up or where the servo motor operates inconsistently. Problems have been observed with solder joints, particularly on the power transformer, which can lead to intermittent power-related symptoms.
Repair Approach
Repairs may involve resoldering power transformer connections and replacing capacitors in the power section to address issues with the unregulated 12V supply. The specific repair work performed depends on the findings during evaluation.
Testing & Quality
Testing is performed to the extent possible with available equipment. Operational testing may be limited by the absence of certain fixtures or accessories such as a keypad. Customers should plan to perform final operational testing in their application after receiving the repaired unit.
Service and repair your broken Branson part
We can repair your Branson model TDR 50 in our facility. Let our skilled technicians get your Branson back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
