Repair
Repair Price: $ 780.00
Purchase
CSL Part Number: 68287

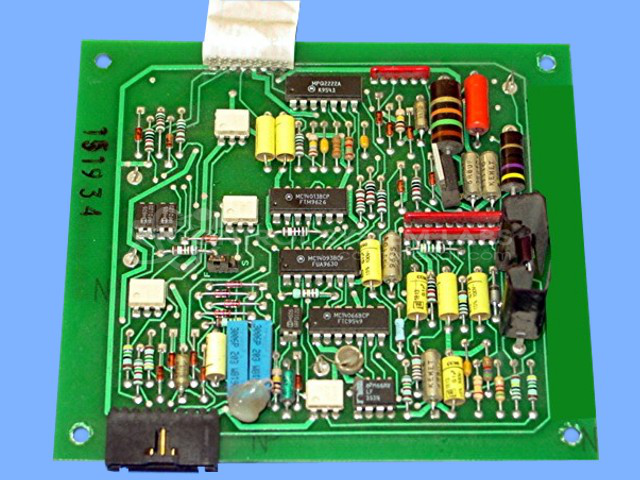

Product Overview: The auto tune control board automatically matches the ultrasonic generator's output frequency to the resonant frequency of the welding stack. Rated for 900 strokes per minute operation, it is used in ultrasonic plastic welding machines to maintain stable, efficient energy transfer during high-speed production cycles.
Category: Ultrasonic Generator / Welder
Manufacturer: Branson Ultrasonics
Manufacturer Part Number: 100-222-018 REV 6
Also Known As(AKA): 100-242-107
Common Failures
Units received for evaluation commonly exhibit control issues characterized by a lack of output. These problems may result from failure of multiple components, such as integrated circuits and resistors.
Repair Approach
Repairs typically involve replacing damaged components, which may include diodes, resistors, and integrated circuits. Following component replacement, the unit is tested to confirm proper operation. In cases where extensive component damage is found, we recommend that customers verify system voltages and check external components before reinstalling the repaired unit.
Testing & Quality
Following repair, units are tested to confirm correct operation. Testing may include extended run-time evaluation to verify stability and functionality. Some units received for evaluation show No Fault Detected after testing and are returned with an evaluation or checkout charge applied.
Service and repair your broken Branson Ultrasonics part
We can repair your Branson Ultrasonics model 100-222-018 REV 6 in our facility. Let our skilled technicians get your Branson Ultrasonics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
