Repair
Repair Price: $ 1,332.00
Purchase
CSL Part Number: 29490

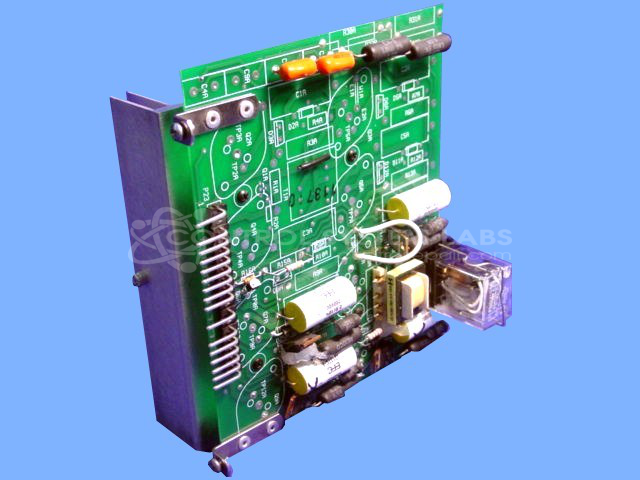

Product Overview: A power board, one of three in an ultrasonic sonic welder power supply assembly. It generates and delivers high-frequency electrical energy to drive the ultrasonic transducer for plastic welding and joining. Used in automated ultrasonic welding systems. Part of a 900-series welder power supply.
Category: Ultrasonic Generator / Welder
Manufacturer: Branson Ultrasonics
Manufacturer Part Number: 100-222-226 REV. 6
Common Failures
Common symptoms observed in this product include control issues and connectivity problems, primarily due to dirty pin connectors between boards. Additionally, certain components may require replacement to restore functionality.
Repair Approach
Repairs typically involve cleaning the pin connectors between boards to ensure proper communication and connectivity. In some cases, specific components are replaced to address hardware-related issues.
Testing & Quality
Post-repair, units undergo verification processes to confirm functionality. Extended burn-in tests, lasting up to three days, are performed to evaluate stability and reliability under continuous operation.
Service and repair your broken Branson Ultrasonics part
We can repair your Branson Ultrasonics model 100-222-226 REV. 6 in our facility. Let our skilled technicians get your Branson Ultrasonics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
