Repair Price: $ 720.00
Purchase
CSL Part Number: 80923

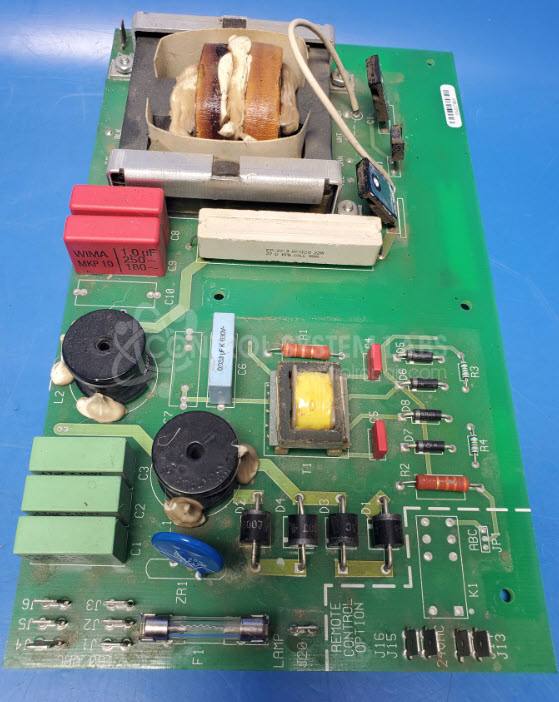

Product Overview: The Branson Ultrasonics 100-242-269 (S40-12) is a control board designed to drive ultrasonic transducers in industrial sealing and welding applications. It converts incoming 120-160 VAC line voltage to high-frequency AC output (approximately 300 VAC at 43-45 kHz) to power ultrasonic actuators. Commonly used in paper converting, packaging, and material joining equipment, it features IGBT-based switching and a custom high-frequency transformer. The board operates intermittently in typical applications rather than continuously.
Category: Ultrasonics
Manufacturer: Branson Ultrasonics
Manufacturer Part Number: 100-242-269
Also Known As(AKA): S40-12
Common Failures
Common issues observed in this product include transformer failure and physical damage to components such as circuit board traces or related parts. These failures may result from component wear or external factors affecting the unit.
Repair Approach
Repairs may involve cleaning, resoldering connections, and restoring mechanical integrity. Damaged transformers can be replaced when available. Circuit board trace repair and damage mitigation are performed as needed based on evaluation findings.
Testing & Quality
After repair work is completed, diagnostic testing is performed to verify functionality. This includes applying appropriate voltage to confirm the unit operates at expected frequency and output levels. Testing confirms the unit meets operational specifications prior to return.
Service and repair your broken Branson Ultrasonics part
We can repair your Branson Ultrasonics model 100-242-269 in our facility. Let our skilled technicians get your Branson Ultrasonics back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
