Brother B43K033-1 KE430C Multiple Output Power Supply

Repair

Repair Price: $ 1,240.00

Repair Now

Purchase

https://controlrepair.com/web/image/product.template/100666/image_1920?unique=22f0076
  • Condition

Purchase Price: $ 0.00 $ 0.00 1240.0 USD

$ 0.00

This combination does not exist.

Add to Cart

CSL Part Number: 80318

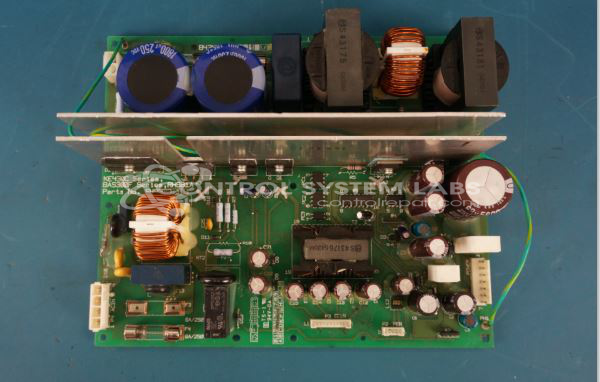

Product Overview: A multiple output power supply that converts incoming AC to the various DC voltages needed to operate industrial bar tacking sewing machines. Commonly used in automated garment and textile manufacturing equipment. Delivers multiple regulated output rails and includes integrated fuse protection.
Category: Power Supply
Manufacturer: Brother
Alternate Manufacturer Names: For KE-430C, KE-431C, KE-432C Machines
Manufacturer Part Number: B43K033-1
Also Known As(AKA): S43173
Other Synonyms: For KE-430C, KE-431C, KE-432C Machines

Brother Bar Tacker Power Supply

Common Failures

During evaluation, an incorrect fuse was observed, specifically a 7A fuse where a 5A fuse is specified. Additionally, a ground wire connection was found to be incomplete.

Repair Approach

The repair process included replacing the incorrect 7A fuse with the specified 5A fuse and installing the ground wire. A resistor was also replaced during the repair.

Testing & Quality

Following the repairs, the unit was tested and underwent a 7-hour burn-in period. The unit was confirmed to be operating correctly.

Service and repair your broken Brother part


We can repair your Brother model B43K033-1 in our facility. Let our skilled technicians get your Brother back in operation quickly.


Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.

Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.

Step 3 - Ship or mail the box to the address listed on the RMA.
