CSL Part Number: 113867

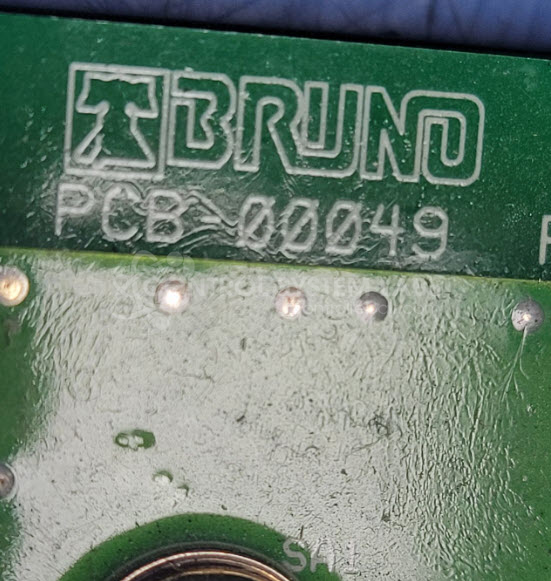

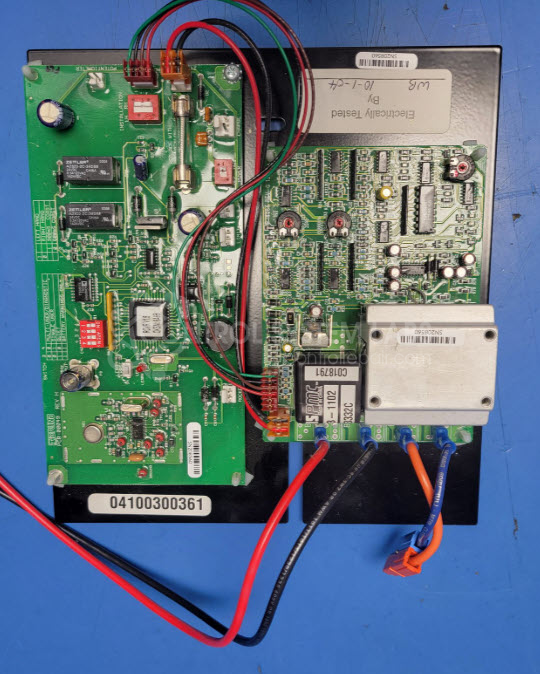

Product Overview: The 2 Board Assembly Chair Lift Controller (Bruno PCB-00049/1513-1102) is a DC motor controller designed for Bruno residential stairlift systems. It regulates bidirectional motor operation and speed control for a 90V motor, incorporating safety interlocks including limit switches that define rail endpoints and a safety switch for emergency stops. The controller interfaces with wireless remote receivers and rocker switches for user control, managing the chair's travel along the stairway rail in both up and down directions.
Category: Motor Controls
Manufacturer: Bruno

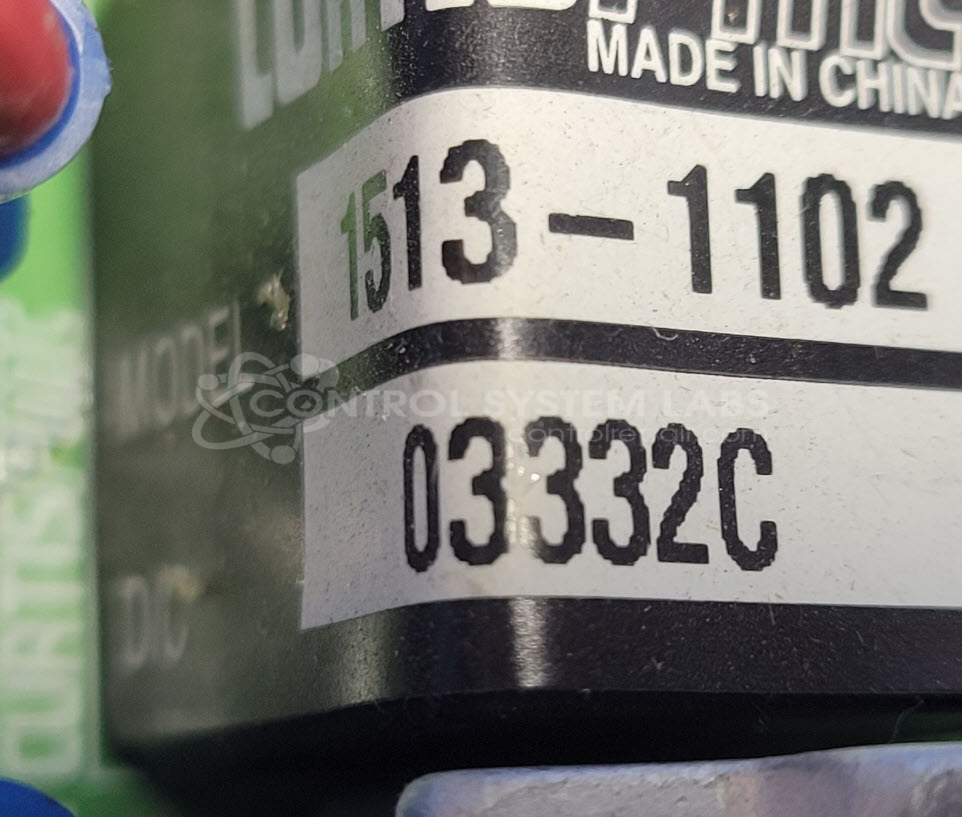

Manufacturer Part Number: PCB-00049/1513-1102
Please send in with wiring diagrams and a good problem description.
Common Failures
Units may exhibit symptoms such as receiving power but failing to move, sometimes accompanied by a clicking sound. Evaluation may identify issues such as burned or defective connectors that require replacement.
Repair Approach
Repairs typically involve diagnostic testing to verify motor functionality and control response. Testing includes verification of forward and reverse operation, as well as safety and limit switch functionality. Components found to be defective during evaluation are replaced as needed to restore functionality.
Testing & Quality
After repair operations, testing is performed to verify operational capacity, including direction control, speed adjustment, and safety feature functionality. Units undergo testing to confirm quality and reliability before return.
Limited Repair
The Bruno part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Bruno part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
