CSL Part Number: 107514

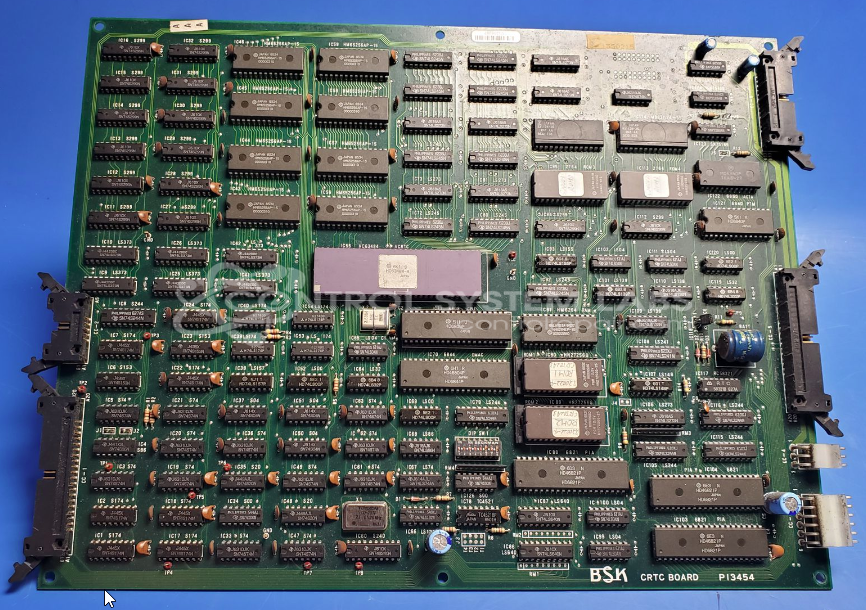

Product Overview: The CRTC Board (P13454) by BSK is a cathode ray tube controller designed to generate video timing signals for CRT-based display systems. It produces horizontal and vertical sync signals to control display output in industrial control panels, operator interfaces, and monitoring equipment. The board includes battery-backed memory via socketed EEPROMs to retain display configurations and settings during power loss. Key components include timing oscillators, voltage regulation circuitry, and a 3.6V NiCad backup battery. This control board interfaces between a system processor and CRT display hardware to manage video signal generation and display synchronization.
Category: Control Board
Manufacturer: BSK
Manufacturer Part Number: P13454
Limited Repair
The BSK part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your BSK part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
