Butler 2146 Butler Datamat Keypad Overlay and Metal Panel
Repair
Call for price
Purchase
CSL Part Number: 106747

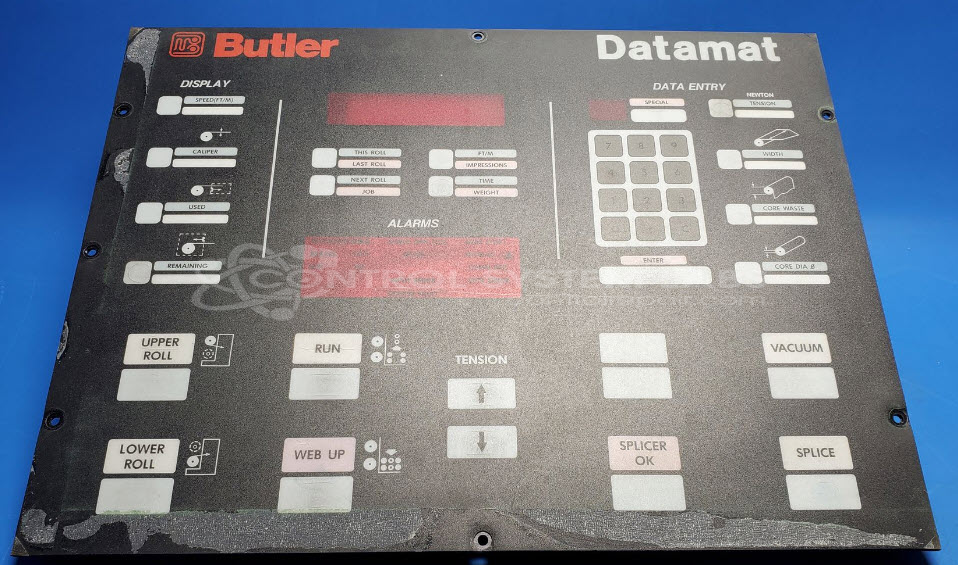

Product Overview: The Butler Datamat Keypad Overlay and Metal Panel is a membrane keyboard assembly used for operator control in industrial winding and splicing equipment. It features a flexible overlay with printed button graphics bonded to a metal mounting panel, with an internal matrix circuit connected via ribbon cable. The keypad includes function buttons such as Core Diameter, Upper Roll, Lower Roll, Vacuum, and Splice. This assembly mounts to Butler Datamat control systems, providing tactile interface for machine operators in paper converting, film processing, and similar web handling applications.
Category: Keyboard Assembly
Manufacturer: Butler
Manufacturer Synonyms: Butler Automatic
Manufacturer Part Number: 2146
Series: Butler Datamat
Please advise which buttons are not working when sending in for repair
Common Failures
This product has exhibited issues with high-resistance connections across various buttons. These connections, all linked to a common pin, have displayed erratic behavior with resistance readings exceeding stable thresholds. Manipulations of the connecting cable can lead to fluctuating button readings, which may indicate complications at the cable's opposite end behind the metal panel.
Repair Approach
Diagnostics involved testing the resistance of each button connection. In cases where adjustments could not stabilize the resistance readings, it was determined that the issue likely originated from the cable's opposite end. Attempts to resolve these issues included mapping a keypad matrix and designing a test fixture. In some cases, the unit was determined to be beyond economic repair and was returned without repair.
Testing & Quality
Comprehensive diagnostic testing was performed to identify and isolate issues. Despite replacing certain connectors, the erratic readings persisted. Final inspection confirmed the unresolved nature of the faults. Affected units were labeled accordingly and returned to the customer with documentation of findings.
Repair your broken Butler part
We can repair your Butler model 2146 .
Please note: our repair turnaround time may be longer than our standard lead times for this item.
Step 1 -
Click the green button above, "Repair Now," and add to your RMA.
Step 2 -
Print the RMA form that is emailed to you, and put it in a box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
You will be sent an authorization for repair via email. Your approval is needed before any work is started.
