Repair
Repair Price: $ 1,293.00
Purchase
CSL Part Number: 108920

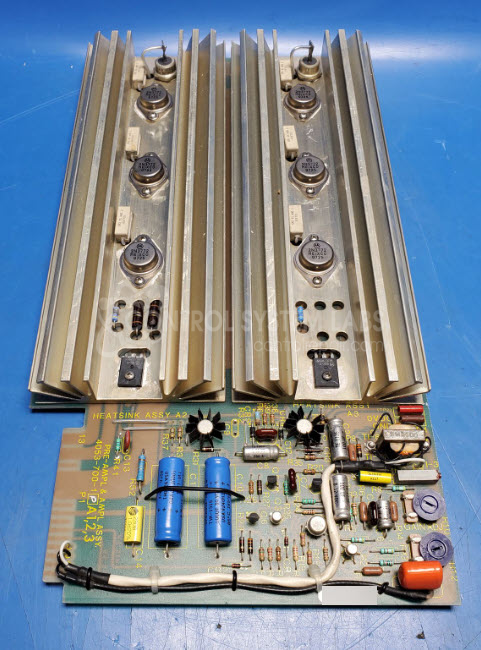

Product Overview: The California Instruments 4053-700-1 is a pre-amplifier control board used in programmable AC power sources and related test equipment. It provides signal conditioning and drive control for output power transistors, managing the amplification chain between low-level control signals and high-power output stages. The board contains discrete transistor circuits including complementary BJT pairs (MJE2955T/MJE3055) for push-pull operation, along with precision resistor networks and zener regulation. It is typically found in California Instruments AC power supply systems used for testing aerospace, military, and industrial electronics under simulated power conditions.
Category: Power Controls
Manufacturer: California Instruments
Manufacturer Part Number: 4053-700-1
Please include card cage for proper testing on this board.
Common Failures
This product may experience issues related to shorted components, including transistors and diodes. Commonly identified failures include shorted transistors, burnt resistors, shorted diodes, and open zener diodes. These issues can result in excessive current draw and component damage.
Repair Approach
The repair process involves identifying and replacing defective components such as burnt resistors, shorted transistors, and diodes. In some cases, the issue may persist after initial component replacement, requiring further evaluation and troubleshooting.
Testing & Quality
Diagnostic testing may reveal circuit integrity issues or evidence of prior thermal stress. Our technicians perform comprehensive testing and evaluation to identify failed components and determine the appropriate repair approach. All serviceable units undergo testing to verify proper operation before being returned to the customer.
Limited Repair
The California Instruments part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your California Instruments part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
