CSL Part Number: 84601

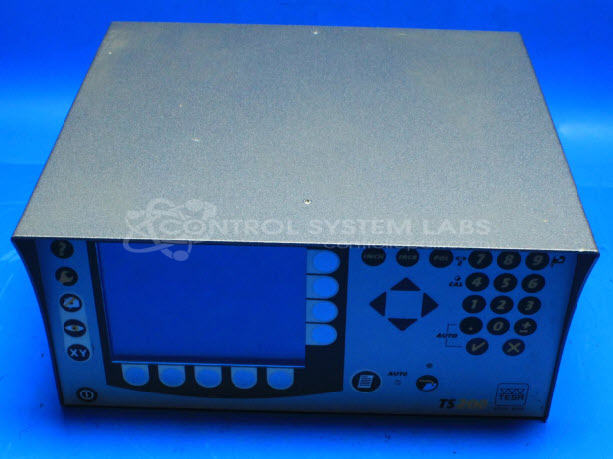

Product Overview: The Caliper Designs TS200 is a control unit designed for paper caliper measurement systems. It provides operator interface functionality for monitoring and controlling caliper gauge equipment used in paper manufacturing and quality control applications. The unit features a display for readout and system status, battery-backed memory for data retention, and dedicated circuitry for contrast control and system operation. It operates on low voltage DC power and uses supercapacitor backup for maintaining critical functions during power transitions.
Category: Operator Interface
Manufacturer: Caliper Designs
Manufacturer Synonyms: Caliper Designs Inc.
Manufacturer Part Number: TS200
Also Known As(AKA): Tesa 9501-3170
Common Failures
Units may appear to power on while the display remains blank. This issue can stem from defective components or damaged circuit traces that affect display contrast and normal operation.
Repair Approach
Repairs typically involve addressing display-related issues through circuit board trace repair or component replacement. Work may focus on traces to the super capacitor and contrast control voltage circuits. Corrosion from leaked components may also contribute to these symptoms and require thorough cleaning and repair.
Testing & Quality
Initial testing frequently shows a blank display. Post-repair testing evaluates contrast voltage and circuit continuity. Complex failure modes may cause units to lock or loop during boot sequence, requiring further investigation and additional repair work to restore functionality.
Service and repair your broken Caliper Designs part
We can repair your Caliper Designs model TS200 in our facility. Let our skilled technicians get your Caliper Designs back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
