Repair
Repair Price: $ 2,454.00
Purchase
CSL Part Number: 85321

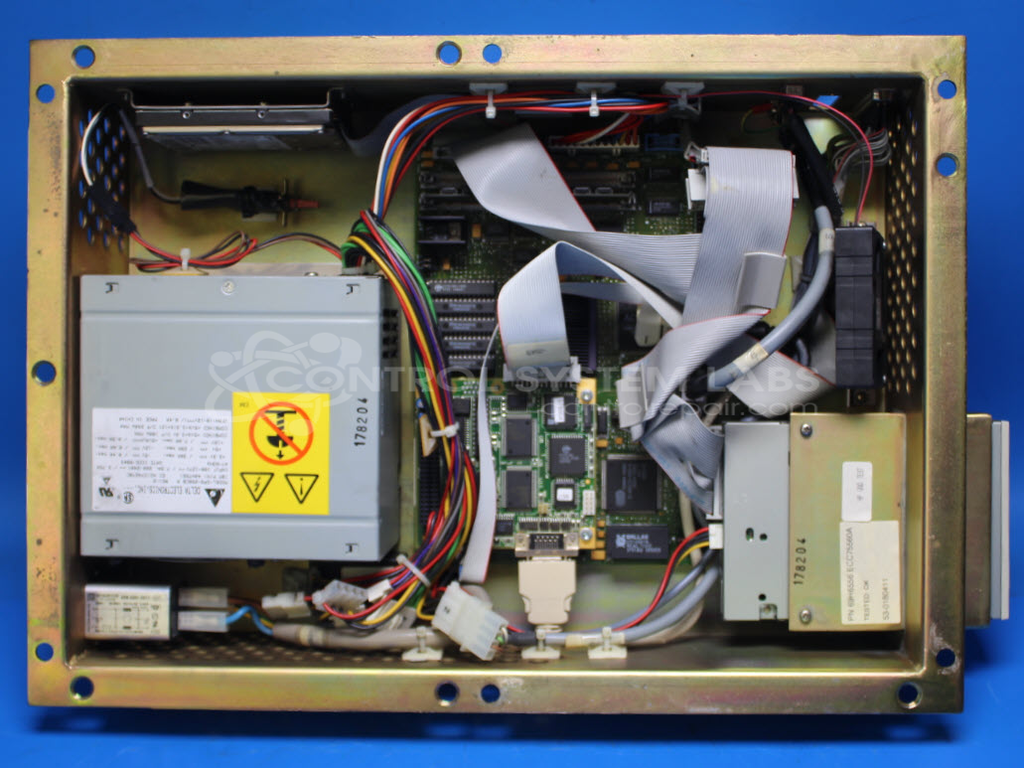

Product Overview: The Robofil 510 CPU Assembly is an industrial PC-based control system for Charmilles wire EDM machines, particularly the Robofil 510. It runs DOS from an internal hard drive and communicates with the machine's card cage via PC/104 daughter card and DB connectors. The assembly includes a motherboard with battery-backed RAM, power supply, fans, and floppy drive interface.
Category: Control Assembly
Manufacturer: Charmilles Technologies
Manufacturer Part Number: 69H6556
Also Known As(AKA): ECC75560 8590400
Common Failures
This product has experienced issues including screens not displaying, difficulties booting from hard disk drives (HDD), and errors when installing language files. These issues have been associated with components such as daughter PCBs, HDDs, and fans.
Repair Approach
Repairs have included replacing daughter PCBs and HDDs, and performing preventative maintenance by replacing electrolytic capacitors and fans. Additional operations have involved cleaning, restoring mechanical integrity by replacing missing screws and cables, and conducting testing protocols. Component replacements are sometimes limited by cost and availability considerations.
Testing & Quality
Diagnostics and testing procedures have included boot and burn-in tests. Testing has been performed to evaluate operational capability, although some tests may be limited when specific equipment is not available. Units are cleaned and configured following repairs.
Service and repair your broken Charmilles Technologies part
We can repair your Charmilles Technologies model 69H6556 in our facility. Let our skilled technicians get your Charmilles Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
