Repair
Repair Price: $ 1,132.00
Purchase
CSL Part Number: 76324

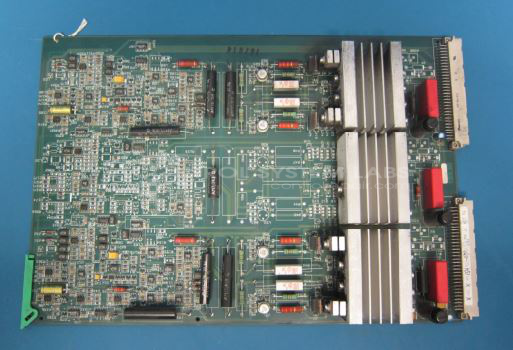

Product Overview: The Apm Control Board (part number 8514560 J) is a motion control circuit board manufactured by Charmilles Technologies for electrical discharge machining (EDM) systems. This board manages XYZ axis positioning and movement control in Charmilles EDM equipment. It coordinates precise electrode positioning during the EDM process, which is critical for accurate material removal in tool and die manufacturing, aerospace component production, and precision machining applications. The board interfaces with servo drives and feedback systems to maintain tight tolerances during spark erosion operations.
Category: Control Board
Manufacturer: Charmilles Technologies
Manufacturer Part Number: 8514560 J
Also Known As(AKA): CT208121823
Must send in for repair evaluation and quote.
Common Failures
One frequently observed issue with this product is damage to the Charmilles board. Customers have reported functionality losses associated with this component.
Repair Approach
Repairs focus on targeted testing and replacement of affected components on the board. The procedure includes component-level tests and power tests to verify functionality post-repair.
Service and repair your broken Charmilles Technologies part
We can repair your Charmilles Technologies model 8514560 J in our facility. Let our skilled technicians get your Charmilles Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
