Repair
Repair Price: $ 1,132.00
Purchase
CSL Part Number: 72993

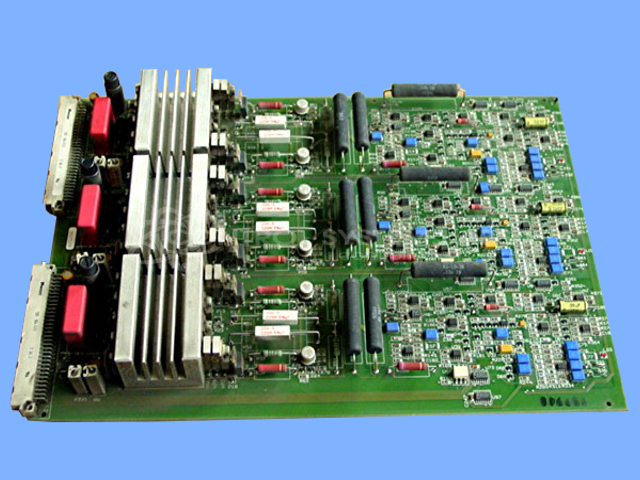

Product Overview: The Charmilles Technologies 8515120 APMT XYZ is a three-axis servo control module used in electrical discharge machining (EDM) systems. It provides independent motion control for X, Y, and Z axes, enabling precise electrode positioning during the EDM process. The module contains multiple drive channels with power resistors and protection circuitry for each axis. It is commonly found in Charmilles wire and sinker EDM machines where simultaneous multi-axis control is required for complex machining operations.
Category: Servo Controls
Manufacturer: Charmilles Technologies
Manufacturer Part Number: 8515120
Also Known As(AKA): MODEL# ON WHITE TAG
Can only do partial repairs when practical. Final testing on your machine.
Common Failures
Common issues include Z-axis malfunctions, general board non-functionality, and defective components such as fuses and resistors that can lead to operational failures.
Repair Approach
Repairs typically involve testing components using specialized equipment to identify discrepancies, such as resistors being out of tolerance or open fuses. Defective components are replaced as needed. In some cases, component realignment or straightening may be required to restore functionality.
Testing & Quality
After repairs are completed, units undergo testing to verify proper functionality. This includes confirming that components operate within their specified parameters. Products are reviewed by technicians to maintain quality and reliability standards.
Limited Repair
The Charmilles Technologies part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Charmilles Technologies part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
