Repair
Repair Price: $ 2,072.00
Purchase
CSL Part Number: 35689

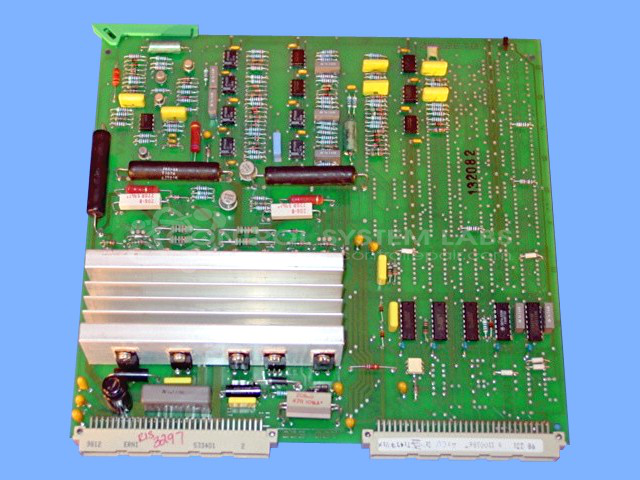

Product Overview: The Charmilles Technologies 852 5700 C is a power module board used in electrical discharge machining (EDM) systems. It controls motor drive functions for axis movement, including Z-axis operation in both automatic and manual modes. This board features a partially populated design, with certain sections intentionally left without components for specific configurations. It interfaces via DIN connectors and is commonly found in Charmilles EDM equipment for precision metal machining applications.
Category: Control Board
Manufacturer: Charmilles Technologies
Manufacturer Part Number: 852 5700 C
Also Known As(AKA): 8/132/250 & 8525700C
Common Failures
One observed issue is that the Z-Axis does not move in either automatic or manual operation modes.
Repair Approach
The standard repair process involves verifying operational procedures and conducting a thorough inspection. Cleaning of any solder flux from critical areas is also performed.
Testing & Quality
The product undergoes comprehensive testing, including a burn-in test with the motor to confirm proper operation. All repairs are subjected to inspection and testing.
Service and repair your broken Charmilles Technologies part
We can repair your Charmilles Technologies model 852 5700 C in our facility. Let our skilled technicians get your Charmilles Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
