CSL Part Number: 84097

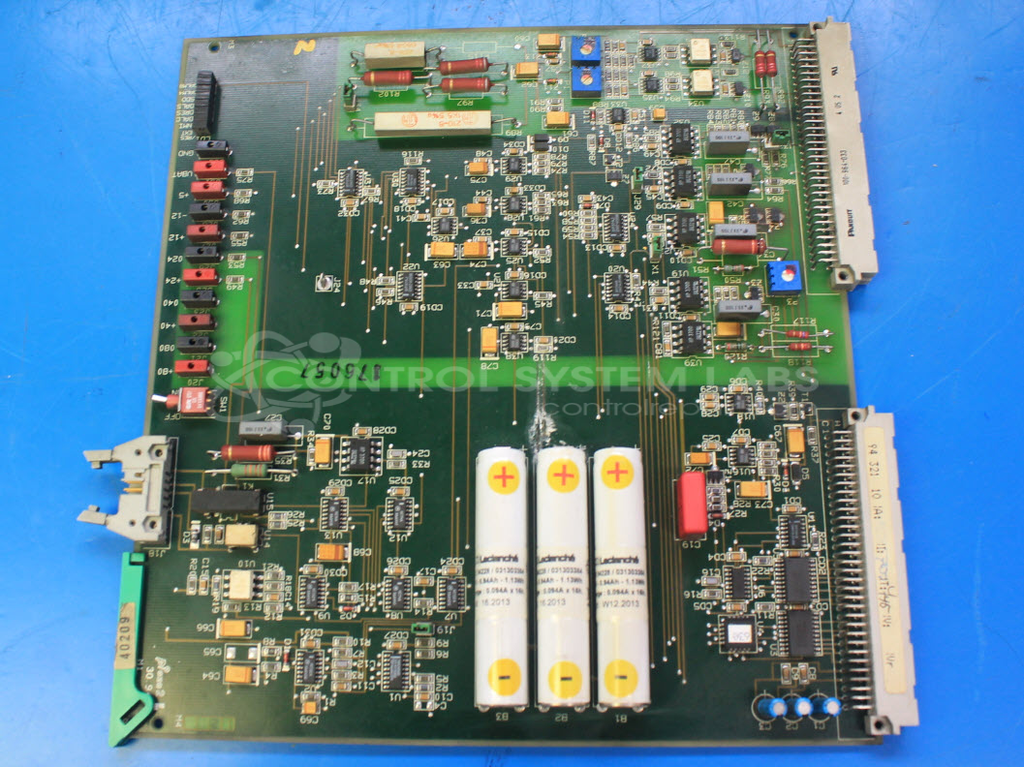

Product Overview: The Roboform 40 circuit board (CT8132570B) is a control board manufactured by Charmilles Technologies for the Roboform series of electrical discharge machining (EDM) equipment. It provides primary control functions for EDM operations, managing system parameters and coordinating machine processes. The board includes onboard battery backup for memory retention and voltage supervision circuitry. It is commonly found in Charmilles Roboform EDM machines used for precision metal forming and tooling applications.
Category: Control Board
Manufacturer: Charmilles Technologies
Manufacturer Part Number: CT8132570B
Series: Roboform
Also Known As(AKA): Control Board
Common Failures
The Roboform 20 boards commonly experience issues related to solder joints and corrosion. These issues often result in malfunctioning components.
Repair Approach
The typical repair process may include replacing NiCad batteries, repairing connections, and addressing corrosion on the board. Our team cleans the board and ensures that electrical connections are secure.
Testing & Quality
After repairs, the product undergoes Level 1 Testing to verify basic functionality. A team member conducts a co-check to validate the repair quality and confirm that the board operates as expected.
Service and repair your broken Charmilles Technologies part
We can repair your Charmilles Technologies model CT8132570B in our facility. Let our skilled technicians get your Charmilles Technologies back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
