Repair
Repair Price: $ 1,154.00
Purchase
CSL Part Number: 54906

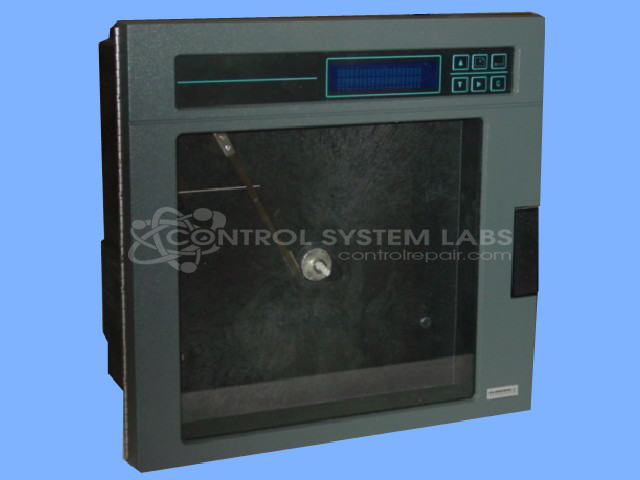

Product Overview: The Chessell 392 (also marketed as Eurotherm or Schneider Electric) is a circular chart recorder that uses paper charts to continuously record process variables over time. It employs a rotating circular chart and pen mechanism to create visual trend records of temperature, pressure, flow, or other analog signals in industrial process monitoring applications. Common uses include pharmaceutical manufacturing, food processing, and environmental monitoring where regulatory compliance requires permanent records. The unit features a vacuum fluorescent display for parameter viewing and setup, with programmable configurations stored in onboard memory. It accepts standard analog input signals and supports single or multi-pen configurations for tracking multiple variables simultaneously.
Category: Chart Recorder / Data Logger
Manufacturer: Chessell
Alternate Manufacturer Names: Eurotherm; Schneider Electric
Manufacturer Part Number: 392
Also Known As(AKA): 4392 P/N BRISTOL BAB
Other Synonyms: Eurotherm; Schneider Electric
Common Failures
This product may experience display-related symptoms. During evaluation, technicians may identify components requiring replacement, such as resistors or power management devices. Power supply irregularities on the board may also be observed.
Repair Approach
Repair work may include replacement of display components and related circuitry. In some cases, additional board-level issues may be identified during evaluation that affect repairability or require further assessment.
Testing & Quality
Units are tested following any component replacement to verify functionality. If underlying board-level faults are identified that cannot be economically repaired, the unit may be returned as Beyond Economic Repair or with a quotation for further work.
Service and repair your broken Chessell part
We can repair your Chessell model 392 in our facility. Let our skilled technicians get your Chessell back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
