Repair
Repair Price: $ 1,186.00
Purchase
CSL Part Number: 87731

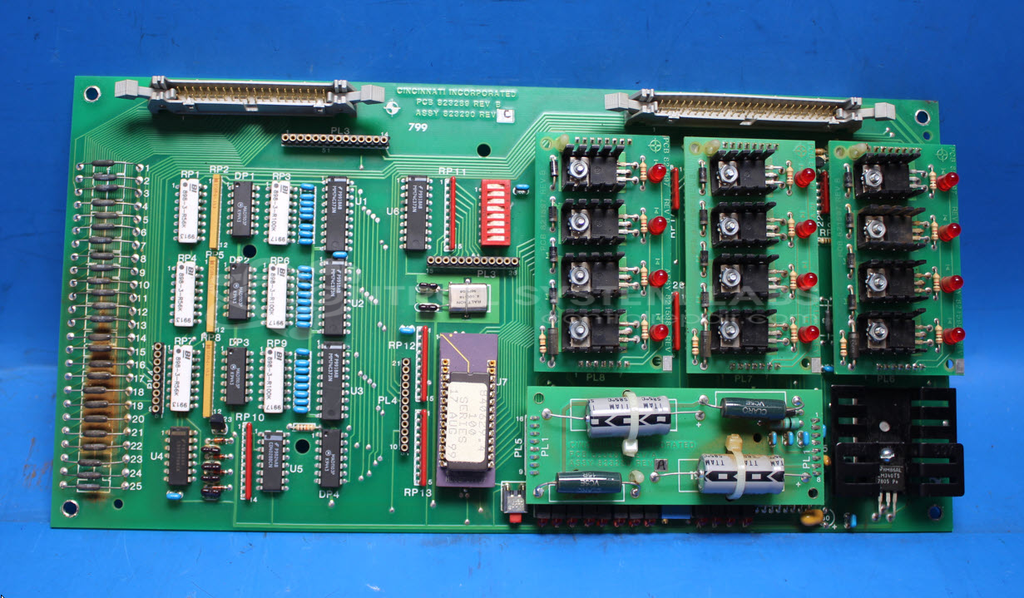

Product Overview: The Sheer Logic Board with 4 Modules (Cincinnati 823290 Rev C) is a microprocessor-based control assembly used in Cincinnati industrial machinery, typically for coordinating machine sequencing and I/O management. It consists of a main logic board with CPU, EPROM program memory, and socketed TTL/CMOS logic ICs, plus modular daughter cards containing output drivers (TIP122 transistors) and status LEDs. The assembly interfaces through multiple connectors including PL1 and PL2 for inputs, outputs, and control signals. Common in metalworking or material handling equipment requiring programmable logic control of motors, actuators, and sensors.
Category: Control Assembly
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 823290 Rev C w/821598 w/823288 Rev A
Also Known As(AKA): 823289
Common Failures
This product has experienced a variety of issues, often related to component-level faults and installation-related concerns. Common symptoms include fault indicators, non-responsive operation when installed, irregular LED behavior, and faults triggered during normal operation. Damage due to handling or connection issues has also been observed.
Repair Approach
Repairs typically involve component replacement, securing connections and hardware, and resoldering as needed. Diagnostic assessments are performed to address identified issues and evaluate the unit's overall condition.
Testing & Quality
After repairs, products undergo testing procedures designed to verify functionality and reliability. All repairs are reviewed by qualified technicians to confirm effectiveness. Testing protocols are applied based on the specific repair performed and the results of the initial evaluation.
Service and repair your broken Cincinnati Inc. part
We can repair your Cincinnati Inc. model 823290 Rev C w/821598 w/823288 Rev A in our facility. Let our skilled technicians get your Cincinnati Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
