Repair
Repair Price: $ 1,196.00
Purchase
CSL Part Number: 86661

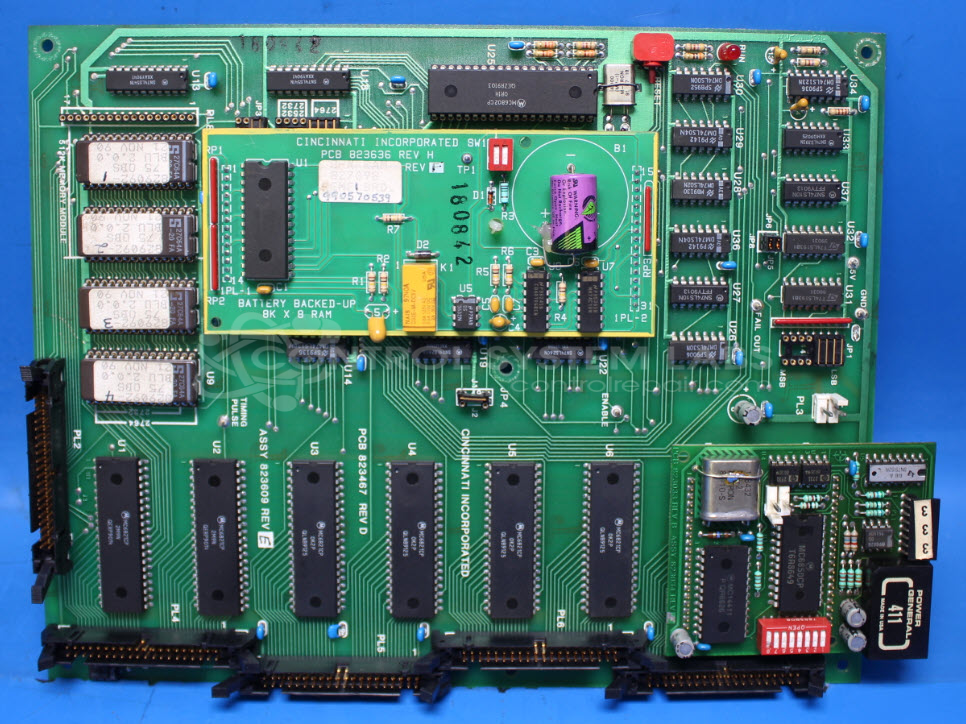

Product Overview: The Control Board 3 Piece Assembly is a multi-board control system used in Cincinnati Inc. industrial equipment. This assembly comprises three interconnected printed circuit boards (manufacturer part numbers 823609, 823636, and 823034) that work together to manage machine operations and communications. It features digital control circuitry, battery-backed memory retention, and status indication via RUN light. The assembly operates on 5VDC and is commonly found in Cincinnati paper processing or converting machinery, providing essential control and monitoring functions for automated industrial operations.
Category: Control Board
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 823609, 823636 & 823034
Common Failures
Common issues observed with this product include damage to circuit board traces, which can result in communication failures. These issues may be related to specific board components.
Repair Approach
Repairs typically involve addressing circuit board trace damage. For example, restoring the ground trace on the communication PCB may be necessary. Evaluation often reveals the need for specific component replacements or repairs to restore functionality.
Testing & Quality
After repairs, the product undergoes testing to verify operational status. This includes verifying digital activities and confirming that indicator lights such as the RUN light are functioning as expected. Repaired units are tested to confirm restored communication and operational integrity.
Service and repair your broken Cincinnati Inc. part
We can repair your Cincinnati Inc. model 823609, 823636 & 823034 in our facility. Let our skilled technicians get your Cincinnati Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
