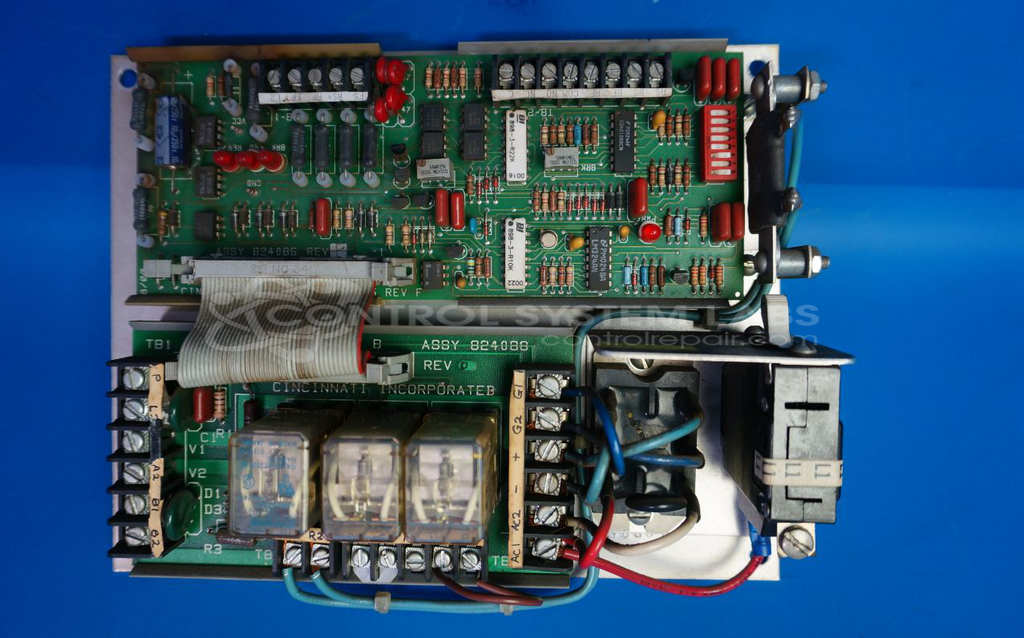

Product Overview: The Cincinnati 824086 with 824088 control board assembly is used in Cincinnati shear systems, specifically models like the 2CC06. This assembly manages motor output voltage and back gauge motion control functions. It operates on 120V AC input and provides relay-controlled outputs for directional motion commands (forward/reverse feed and stepping). The board uses optoisolators for signal isolation, configurable DIP switches for settings, and works in conjunction with companion board 820458 for complete shear control.
Category: Control Assembly
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 824086 with 824088
Common Failures
Typical issues with this product involve electrical problems affecting motor functionality and back gauge motion. Common symptoms include no voltage output to the motor assembly and error indications preventing back gauge movement. These issues are often related to burned or defective resistors and capacitors as well as faulty opto-isolators.
Repair Approach
Repairs typically involve replacing burned or defective components, including resistors, capacitors, and opto-isolators. Circuit board traces may also require repair due to damage from burned components.
Testing & Quality
Repaired units undergo thorough testing, including burn-in tests with load and motor tests under different voltage conditions. All units are subjected to extensive diagnostic testing to confirm functionality of relays and component connections.
