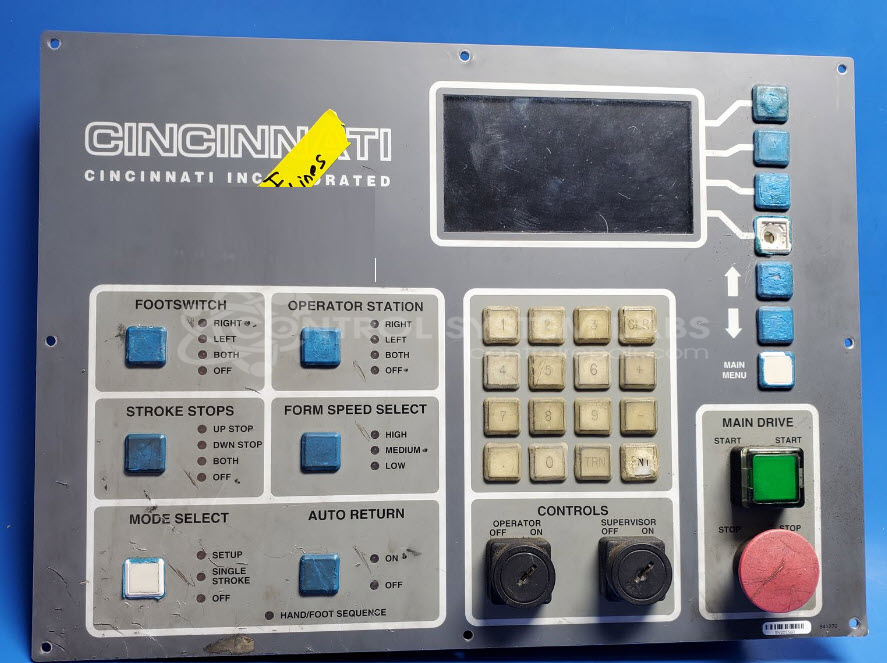

Cincinnati Inc. 841270 CB-II Press Brake Control with 6 PC Boards
Repair
Repair Price: $ 1,100.00
Purchase
CSL Part Number: 106178
Product Overview: The CB-II Press Brake Control is an operator interface panel for Cincinnati Inc. press brakes featuring an integrated 5.7-inch LCD display (240x128 resolution with CCFL backlight) and 29 momentary pushbutton switches arranged as a keypad. It houses six printed circuit boards including a power board, interface board, and processor mounting provisions. The assembly requires the associated CPU board (processor board with memory and program) for full operation. It provides machine control, parameter entry, and status monitoring for Cincinnati press brake applications. The interface board is identified by manufacturer part 841270, though the complete assembly lacks a single part number designation.
Category: Operator Interface
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 841270
Series: CB II Press Brake
We need the CPU card to be included. Operator front Panel Button actuators if needed are quoted separately additional parts and labor.
Common Failures
Common issues with this product include defective or degraded switch actuators, worn buttons, faulty displays, and malfunctioning ribbon cables, which can lead to no display or poor contrast. Additionally, defective components such as ICs, inductors, and resistors are frequent causes of operational failures or intermittent functionality.
Repair Approach
The repair process typically involves replacing defective components such as displays, ribbon cables, and worn pushbutton actuators. Adjustments, like contrast tuning and replacing contrast potentiometers, are often necessary when integrating new display types. In some cases, re-soldering or replacing electronic components like inductors, transistors, and ICs may be required to restore functionality.
Testing & Quality
Repairs undergo testing to confirm effectiveness. This includes verifying switch functionality, display integrity, and successful power-up with customer CPUs. Burn-in tests are performed to assess stability over time. Customers are responsible for final comprehensive testing after repairs are returned.
CPU board with System Cartridge looks like this, please include with the operator panel when sending in.
Service and repair your broken Cincinnati Inc. part
We can repair your Cincinnati Inc. model 841270 in our facility. Let our skilled technicians get your Cincinnati Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
