Repair
Repair Price: $ 324.00
Purchase
CSL Part Number: 83554

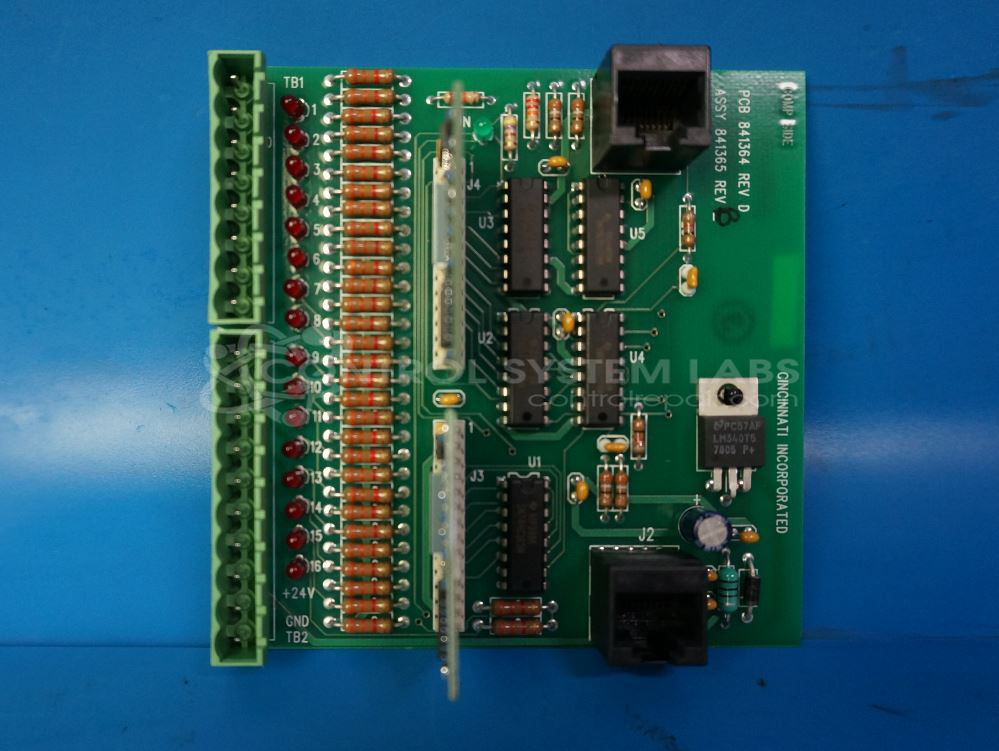

Product Overview: The 841365 is a control board assembly for Cincinnati Inc CB II series press brakes, consisting of a main board with two integrated daughter boards. This PCB set manages core control functions within the press brake's electronic system. It is designed to work with other control modules in the CB II architecture and features multiple modular jack connections for communication with peripheral devices and sensors. The assembly is also identified as 841684 in some configurations.
Category: Control Board
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 841365
Series: CB II Press Brake
Also Known As(AKA): 841684 PCB
Common Failures
Common issues with this product include defects in modular connectors and resistors, as well as problems related to cold solder joints and corroded components. These failures can result in the device not functioning as expected.
Repair Approach
The repair process involves inspecting all components thoroughly, using tools such as Huntron to identify cold solder joints, and replacing any defective or corroded components. Preventative measures may include replacing parts such as resistors to improve long-term reliability.
Testing & Quality
After repairs, products undergo testing, including burn-in tests with loads and quality control procedures, to verify that issues have been addressed and the unit is operating correctly. Each item is checked by qualified personnel to maintain CSL repair standards.
Limited Repair
The Cincinnati Inc. part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Cincinnati Inc. part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
