Repair
Repair Price: $ 994.00
Purchase
CSL Part Number: 122506

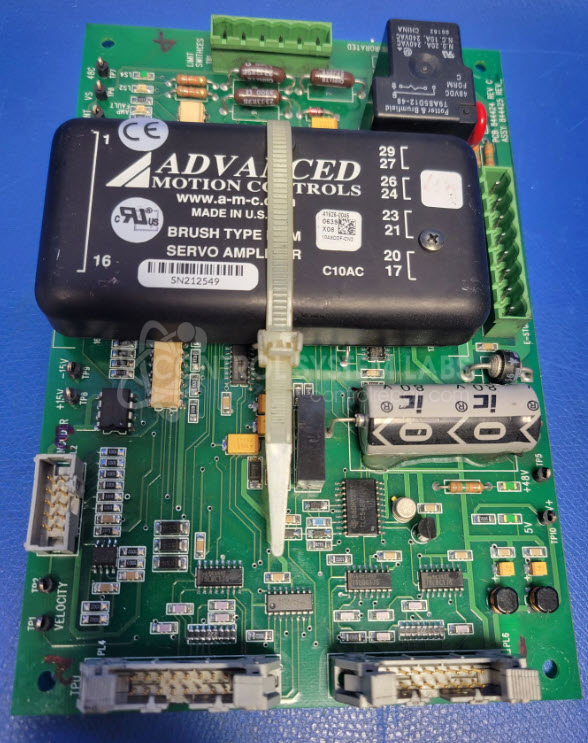

Product Overview: The I/O Board with Servo Amplifier (Cincinnati 829809 REV E & 10A8DD) is a control module used in Cincinnati Inc CB II Press Brake systems. This assembly combines input/output processing with integrated servo amplification to control motor-driven axes in press brake operations. It manages signal communication between the main control system and servo motors, providing precise motion control for bending operations. The board interfaces with position feedback devices and delivers DC power to drive motors for accurate ram positioning and backgauge movement.
Category: Control Module
Manufacturer: Cincinnati Inc.

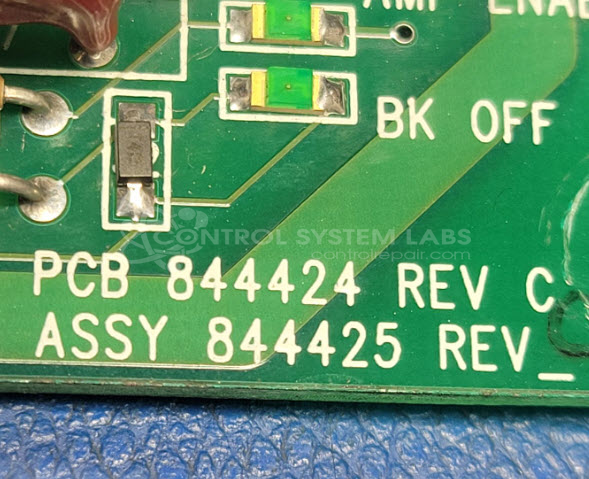

Manufacturer Part Number: 844425
Series: CB II Press Brake
Repair price does not include a replacement PWM servo module - if needed, that will be quoted extra.
Common Failures
This product may experience issues related to motor power delivery or relay contamination that can affect performance. Each unit is evaluated individually to determine the specific cause and appropriate repair approach.
Repair Approach
Repairs typically involve component cleaning, replacement of faulty components as needed, and component-level testing to verify functionality. Our warranty covers the replaced components per our standard terms. We recommend that customers perform a final system test upon installation to confirm proper operation in their application.
Limited Repair
The Cincinnati Inc. part number is only available as a limited repair at our facility. Repairs to this item may be limited due to several reasons:
- Availability of parts
- Less than 100% test ability due to required support equipment
To have us attempt a repair on your Cincinnati Inc. part follow these steps:
Step 1 -
Click the Repair Now button above to add the part and complete the RMA form.
Step 2 -
Print the RMA form that is sent to your email, and put it in the box with the parts for repair.
Step 3 -
Mail the box to the address on the RMA.
After we receive your item, we will perform an inspection and an authorization to repair will be sent for your approval. Work will begin after your authorization is received.
