Repair
Repair Price: $ 1,100.00
Purchase
CSL Part Number: 83192

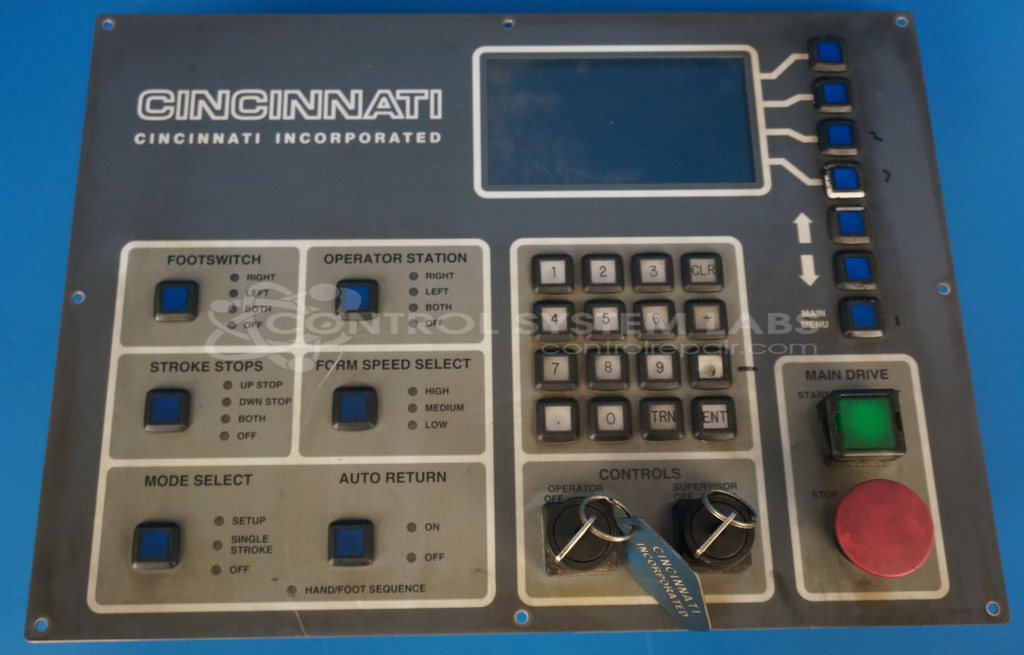

Product Overview: The CB II Press Brake Operator Interface with Display (assembly 845966) is a human-machine interface unit for Cincinnati Inc. CB II series press brakes. It features a 5.7-inch monochrome LCD display with 240x128 resolution, membrane switch keypad for machine parameter entry and control, and communicates with the press brake CPU module. The interface allows operators to program bend sequences, adjust press settings, and monitor machine status during metal forming operations.
Category: Operator Interface
Manufacturer: Cincinnati Inc.
Manufacturer Part Number: 845966 Assembly
Series: CB II Press Brake
We need the CPU card to be included with this for testing or repairs will be limited. The 841562 number is on the operator panel lower right corner. Operator front Panel Buttons, actuators, switches if needed are quoted separately additional parts and labor.
Common Failures
Common issues with the CB II Press Brake Operator Interface include display failures and button malfunctions. Symptoms often reported are displays not showing content or showing inconsistent information, and buttons that do not actuate as expected. These problems can be due to defective LCD panels, backlight issues, or connection-related concerns causing operational inconsistencies.
Repair Approach
We evaluate each unit to determine the appropriate repair approach. Repairs may involve replacing defective LCD screens and adjusting the contrast for improved performance. Buttons and actuators are also replaced as needed. Occasionally, modifications are made to accommodate updated display components. In cases where previous repair attempts left residue or incorrect installations, we address these issues during the repair process.
Testing & Quality
Following repair, units undergo testing procedures including load and burn-in tests to verify proper functionality of the display, buttons, and overall communication. The tests confirm the units meet our quality standards before return shipment.
CPU board with System Cartridge looks like this, please include wit hte operator panel when sending in.
Service and repair your broken Cincinnati Inc. part
We can repair your Cincinnati Inc. model 845966 Assembly in our facility. Let our skilled technicians get your Cincinnati Inc. back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
