Repair
Repair Price: $ 568.00
Purchase
CSL Part Number: 30432

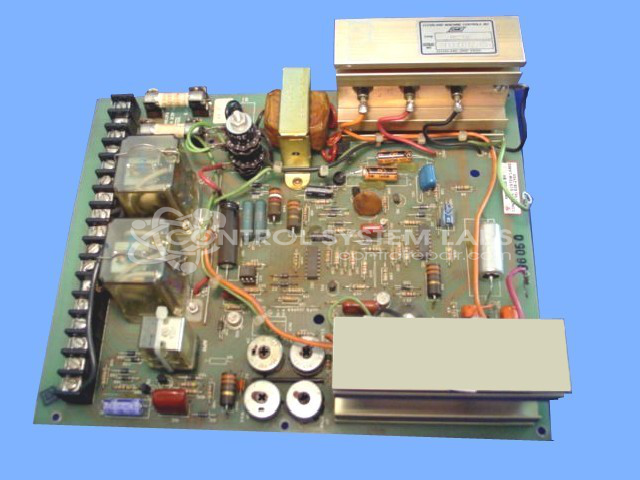

Product Overview: The Cleveland Machine Controls 621 Series is a regenerative DC motor drive designed to control permanent magnet or shunt-wound DC motors from 1/4 to 1 HP at 115 volts DC. It provides adjustable speed control with forward and reverse operation through integrated relays and SCR-based power regulation. Commonly used in paper handling equipment, printing machinery, and other industrial applications requiring precise bi-directional motor control. The drive features adjustable speed potentiometers and relay-based direction switching for operational flexibility.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: 621
Series: 621 Series DC Drive
Common Failures
Frequent issues include defective capacitors, diodes, transistors, and relays. Symptoms of these failures range from malfunctioning relays that prevent direction changes to issues with failed capacitors due to electrical faults. Problems also include high equivalent series resistance (ESR) in capacitors and relays with bad contacts or broken pins.
Repair Approach
Repairs typically involve replacing defective components such as capacitors, transistors, and relays. Adjustments to settings, such as output voltage, are performed to restore proper functionality. Preventative maintenance may also be conducted to replace aging components proactively.
Testing & Quality
Products are tested post-repair to verify functionality, including running motors for extended periods and testing functions like direction changes, speed control, and output voltage settings. These tests are designed to confirm the unit operates as expected before it is returned.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model 621 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
