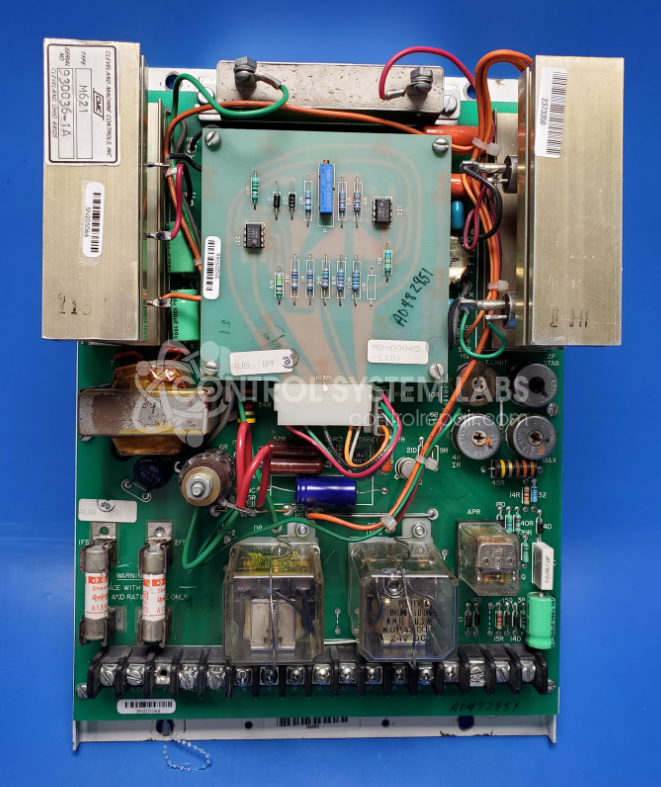

Cleveland Machine Controls M621 w/MO-00045-1 1/4HP - 1 HP 115V DC Drive with Option Board
Repair
Call for price
Purchase
CSL Part Number: 105494
Product Overview: The Cleveland Machine Controls M621 with MO-00045-1 option board is a 1/4 to 1 HP, 115V DC motor drive from the 621 Series. It provides variable speed control for permanent magnet or shunt-wound DC motors in industrial applications. The drive uses SCR-based phase control to regulate armature voltage and includes forward/reverse switching, adjustable acceleration/deceleration, and optional tachometer feedback for closed-loop speed regulation. Common in packaging, printing, paper handling, and material processing equipment requiring precise motor control at fractional horsepower ratings.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: M621 w/MO-00045-1
Series: 621 Series DC Drive
Common Failures
Units have been received with reports of no output, motor speed instability, and recurrent fuse failures. Evaluation identified shorted SCRs, open fuses, defective relays, and faulty transistors. Additional findings included damaged circuit board traces that may have been caused by external wiring conditions or motor-related issues at the customer site.
Repair Approach
Repairs typically involve replacing defective components such as SCRs, transistors, relays, and capacitors. In some cases, missing relay clips and damaged circuit board traces are addressed. Re-soldering and component replacements are performed as needed to restore functionality. The units are then re-evaluated to verify stability and proper speed control.
Testing & Quality
After repairs, each unit undergoes diagnostic testing, including burn-in tests with motors and load simulations to verify operational performance. Repairs that pass these testing protocols are returned to service. Proper setup and wiring at the customer site are important to prevent further damage.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model M621 w/MO-00045-1 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
