Repair
Repair Price: $ 544.00
Purchase
CSL Part Number: 83351

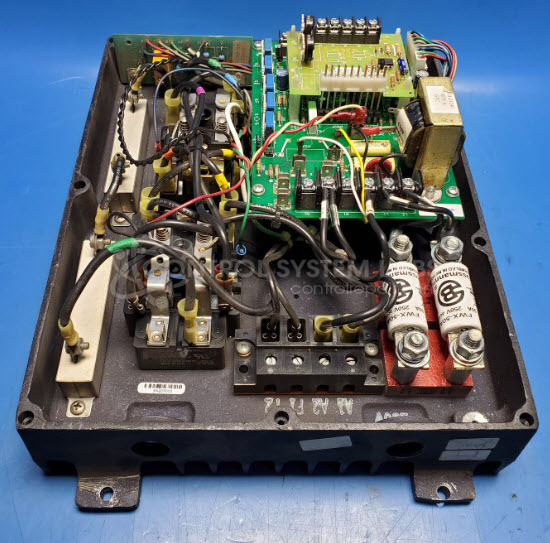

Product Overview: The Pacemaster 2 DC Motor Control is a single-phase SCR-based drive designed to regulate 3 to 5 horsepower DC motors at 230V. Manufactured by Cleveland Machine Controls, it uses a bridge rectifier configuration with adjustable horsepower settings via internal potentiometer. Commonly found in paper handling and industrial machinery applications requiring precise speed control, it features armature and field outputs with manual start/stop and forward/reverse capability. The drive operates with external speed reference potentiometer and provides regenerative or non-regenerative DC motor control depending on configuration.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: MPF-04345
Series: Pacemaster 2
Common Failures
The most frequent issues reported include the unit not outputting power, which is often associated with components such as SCR modules, transformers, and fuses. Terminal blocks have also been identified as a contributing factor in some cases.
Repair Approach
Repairs typically involve replacing components such as SCR modules, transformers, and fuses as needed based on evaluation findings. Preventative replacement of various capacitors may be performed to support long-term reliability. Mechanical integrity is addressed by repairing or replacing broken supports and resolving stripped screw holes during reassembly. Terminal blocks are replaced when defective to resolve connectivity issues.
Testing & Quality
After repairs, units undergo testing to verify functionality. This includes burn-in tests where the unit operates continuously for over four hours, and operational testing to ensure start, stop, and directional controls function correctly. These measures help ensure the unit meets performance standards before being returned.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model MPF-04345 in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
