Repair
Repair Price: $ 456.00
Purchase
CSL Part Number: 10052

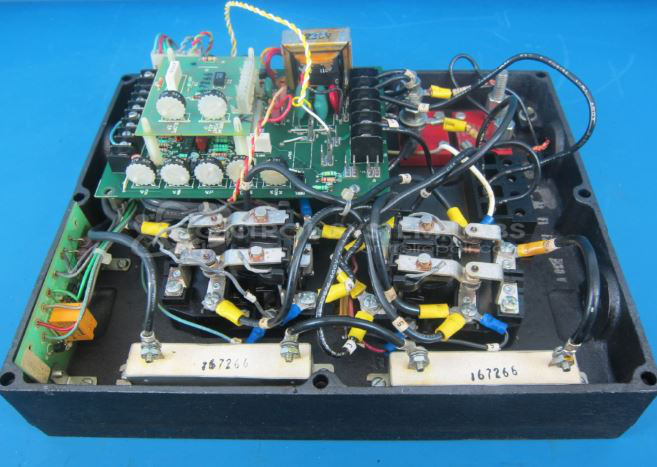

Product Overview: The Pacemaster 2 is a DC motor control from Cleveland Machine Controls designed to regulate DC motor speed and torque in industrial applications. It uses SCR-based power control to drive both armature and field circuits, with relay logic for armature contactor control. The PM2C variant typically operates on AC input power and provides adjustable DC output for motors in machinery, material handling equipment, and other industrial drives requiring variable speed control.
Category: DC Motor Controls
Manufacturer: Cleveland Machine Controls
Manufacturer Synonyms: CMC
Manufacturer Part Number: PM2C
Series: Pacemaster 2
Common Failures
Common issues reported include defective components such as relays, transistors, and thyristor modules. A common failure identified was a short in the SCR module, which affected the output block.
Repair Approach
Repairs involved replacing the defective components and performing preventative maintenance by upgrading several electrolytic capacitors. Key repairs also included addressing a damaged trace at the base of a transistor and replacing a shorted relay to restore functionality to the fields output. Further inspection was performed to verify contactor coil functionality and proper armature operations.
Testing & Quality
A thorough diagnostic process was employed, including Huntron and DMM testing to identify shorts and verify component integrity. Post-repair, the device underwent burn-in testing with a lamp load to verify consistent performance and passed functional testing. All switches and inputs were verified as operational. One corner of the casing was noted to be damaged. Co-inspection was performed to validate all repairs and testing.
Service and repair your broken Cleveland Machine Controls part
We can repair your Cleveland Machine Controls model PM2C in our facility. Let our skilled technicians get your Cleveland Machine Controls back in operation quickly.
Step 1 - Click the green 'Repair Now' button above to add the part and then complete the RMA.
Step 2 - The RMA form will be sent to you via email. Print the RMA form and put it in a box with the item(s) for repair.
Step 3 - Ship or mail the box to the address listed on the RMA.
