CSL Part Number: 114910

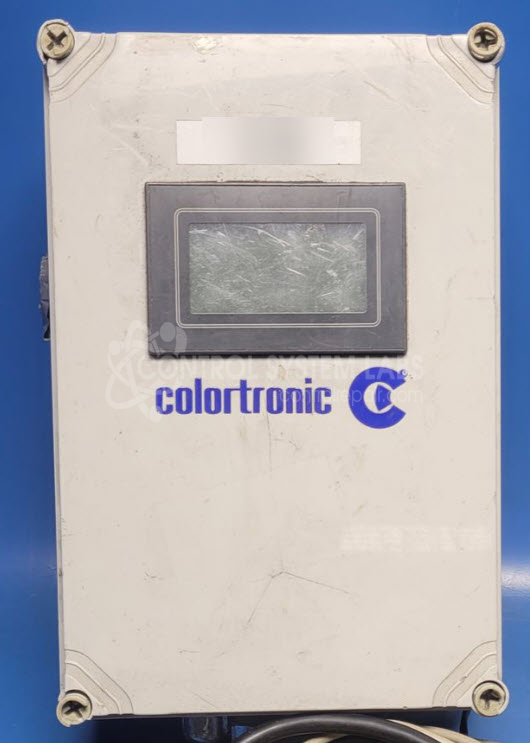

Product Overview: The Colortronic Digital Doser Control (model 267563Q) is a motor control module designed to regulate DC motor speed in plastic injection molding and extrusion dosing systems. It controls gravimetric or volumetric feeders that precisely meter colorant, additives, or regrind into plastic processing equipment. The unit incorporates a PWM DC motor speed control with adjustable potentiometers for tuning output parameters, operating on 115/230 VAC input. It features modular construction with a replaceable drive section and provides controlled voltage output to drive doser motors in plastics manufacturing applications.
Category: Motor Controls
Manufacturer: Colortronic

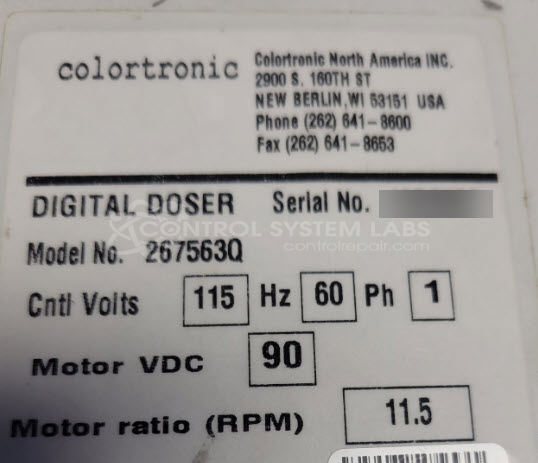

Manufacturer Part Number: 267563Q

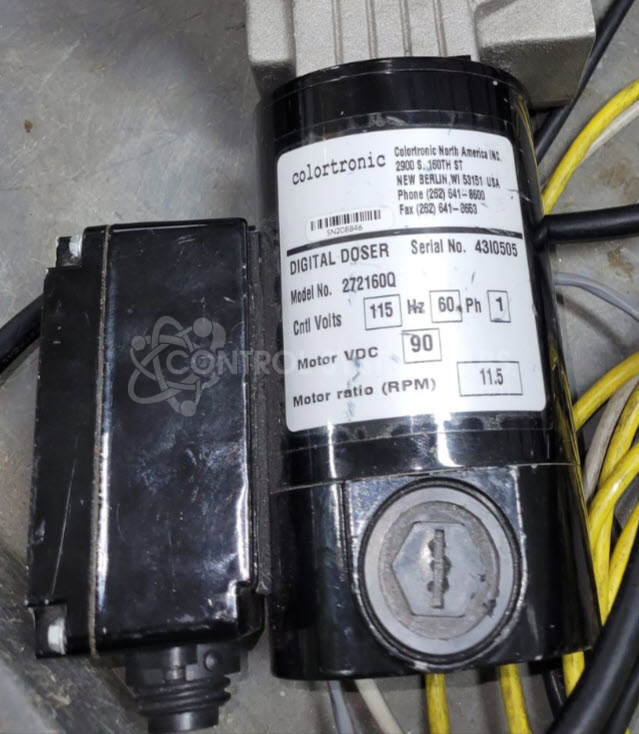

Also Known As(AKA): 272160Q
When sending in please include matching motor/gearbox assembly with the control box, and give a clear problem description.
Common Failures

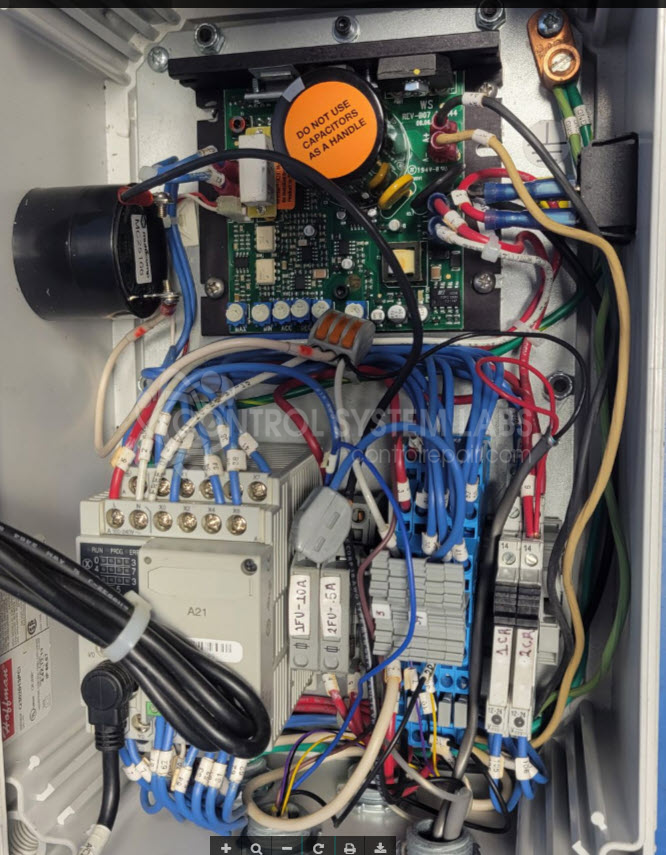

Common issues observed with the Colortronic Digital Doser include the lack of output voltage being sent from the control box to the motor, preventing motor operation. Investigation may reveal defective components within the PWM DC motor speed control system, including capacitors on the circuit board. Physical issues such as loose connections can also occur, notably with the PLC mounting.
Repair Approach
The repair process may involve replacing the defective motor speed control module and adjusting the potentiometers to match the original settings. Ensuring all connections, such as re-seating the PLC, are secure is also an important step. Cleaning and tightening of components are conducted as needed.
Testing & Quality
Repairs conclude with a power-up test to verify the operation of the installed components. A full production simulation test is not available. A burn-in test with a customer-provided motor can be conducted when applicable. We recommend that final testing be performed by the customer to confirm production-level performance.
